4231543 Excavator Hydraulic Rotary Seals ROI For High Sliding Speed Conditions


4231543 Excavator Seal Hydraulic Rotary Seals ROI For High Sliding Speed Conditions

Specification



Excavator Seal Kit Describe

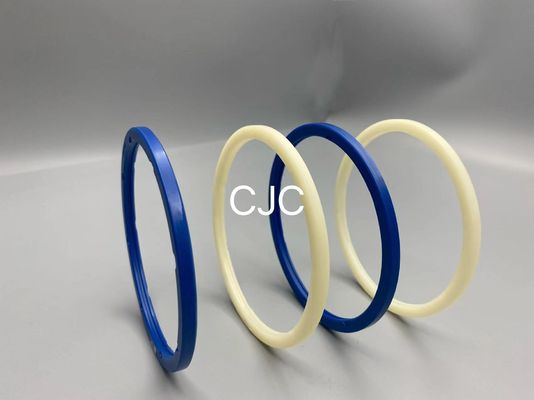

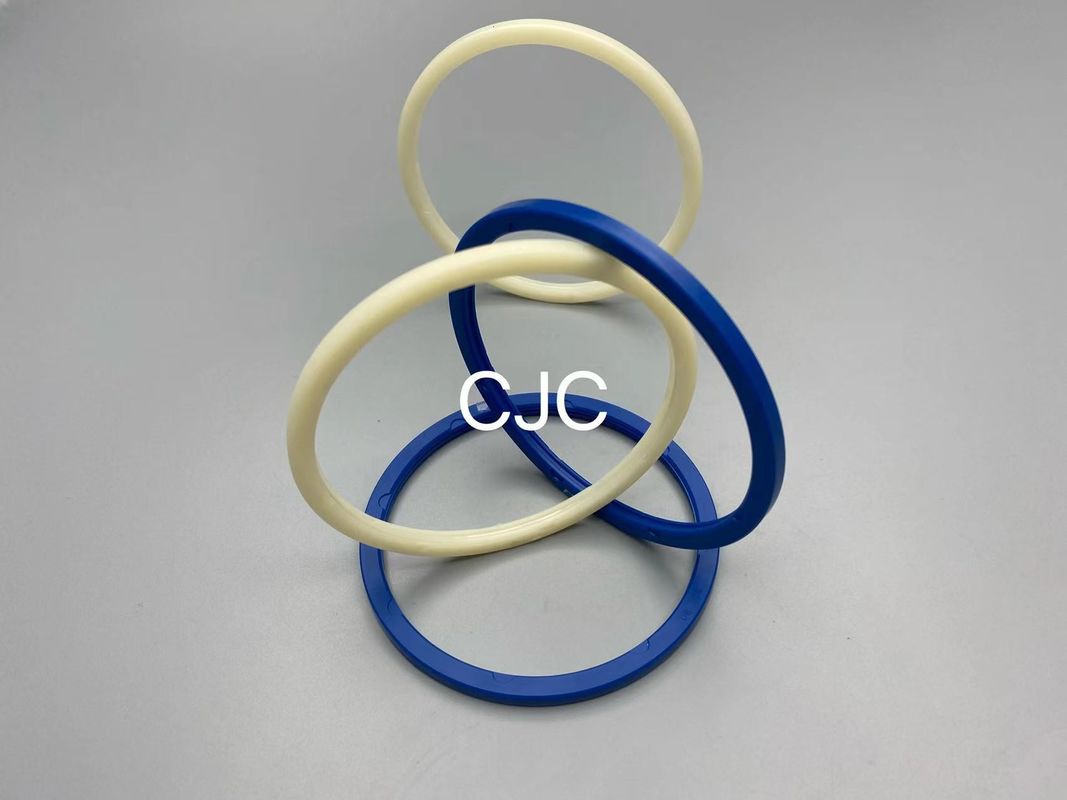

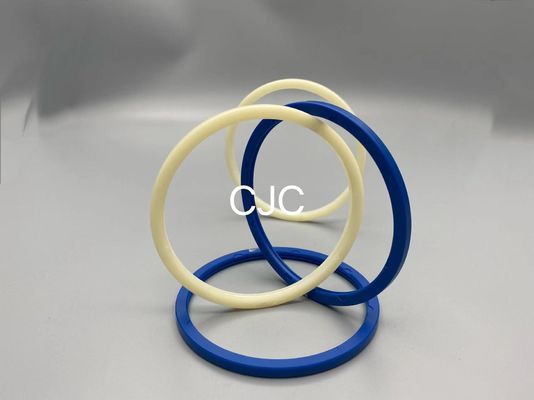

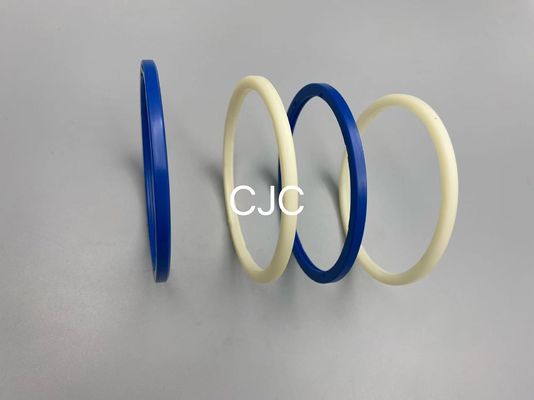

The combined sealing ring is a double-acting piston sealing ring, two retaining rings and two wear rings. There is a sealing element in the middle, which really plays a role of sealing. Place a retaining ring and a wear ring on each side. The retaining ring prevents the sealing ring from being squeezed into the gap. The sealing ring in the middle is a toothed sealing ring, which can play a good sealing role when it is still and in motion. The function of the wear ring is to guide the piston in the cylinder and bear the radial force.


Features

Do not open the seal package if unnecessary, otherwise the dust will stick to the seal or scratch it.
Store in cool place, not on sunlight place. UV and moisture will accelerate the deterioration of rubber and plastics and dimensional changes
Carefully pack, store unpackaged product, do not glue or put into impurities, keep the original state. Keep the Nylon seal package close to prevent moisture cause dimensional changes
Do not put seals near heat sources, such as boilers, stoves. Otherwise heat will accelerate the aging of seals
Do not put seals near the motor and other place where produces ozone
Do not use a needle, wire, rope hang seals, otherwise, would cause the seal deformation, damage the lip
Sometimes, there are color change or white powder on the seal surface (frost phenomenon), this will not affect the performance of the seal
