95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance

Customer Reviews
We feel very happy during the cooperation with Guangzhou CJC Seals Technology Co.,Ltd.. The company has strong strength, good reputation and high cost performance. They have an excellent professional technical team and can complete the project in time and with quality; They respect our needs and abide by the ethics of taking jobs.

—— Alebel Tadele

I'm Online Chat Now

95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance

95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance
95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance 95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance 95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance 95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance

Large Image :  95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance

Product Details:
Place of Origin: China,Japan
Brand Name: NOK,BFAS,SKF
Certification: ISO9001:2015
Model Number: BRT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic bag
Delivery Time: 5-8 days
Payment Terms: L/C,, Western Union
Supply Ability: 150000set month

95 Shore A Excavator Hydraulic Seal Kit High pressure Resistance

Description
Part NO: BRT Function: Back-up Seal Ring
Size: 58*100*3 Application: Excavator Piston Hydraulic Cylinder
Style: Rod Seal Working Tempereture: -40--120℃(according To The Material)
Material: PTFE/PTFE+BRONZE Hardness: 90-95 Shore A
High Light:

Excavator Hydraulic Seal Kit

,

95 Shore A Hydraulic Seal Kit

,

High Pressure Resistance Excavator Seal Kit

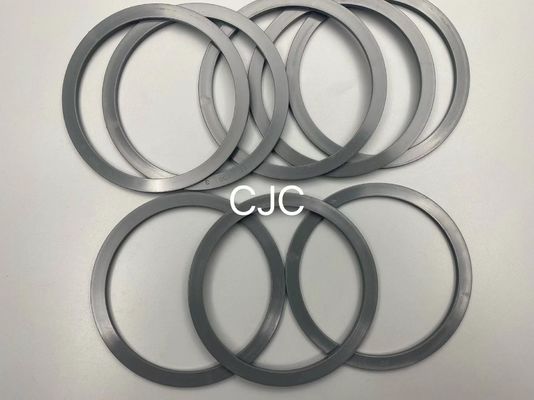

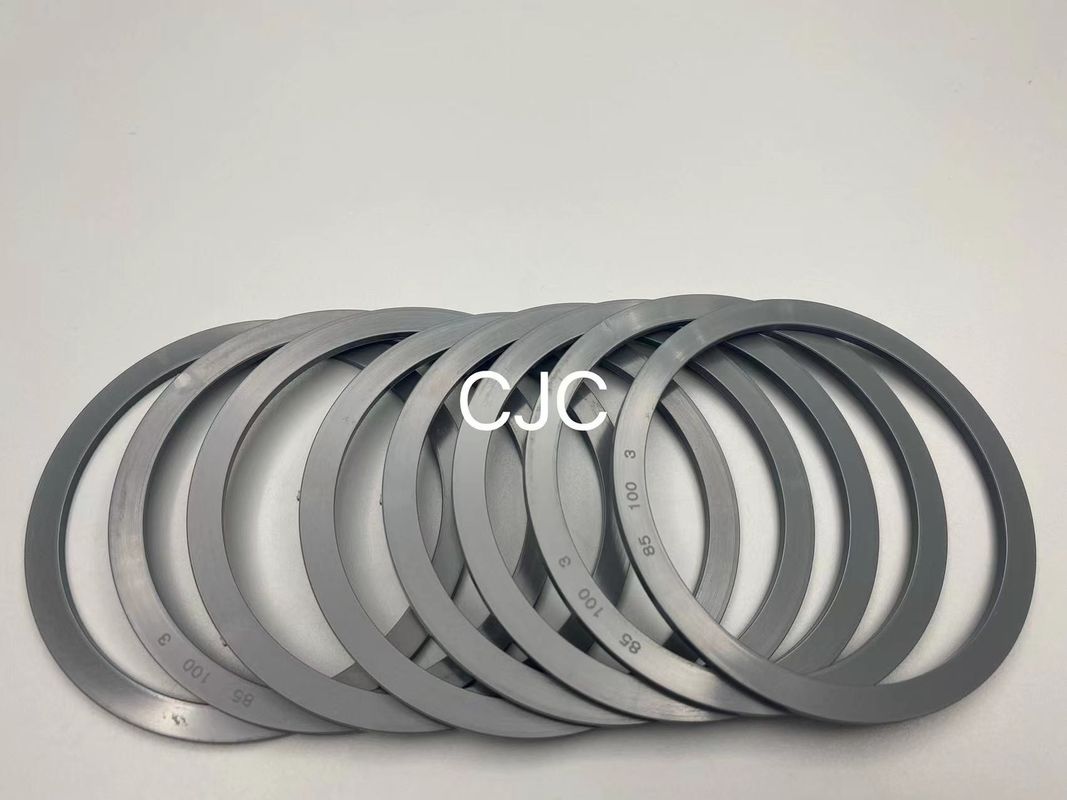

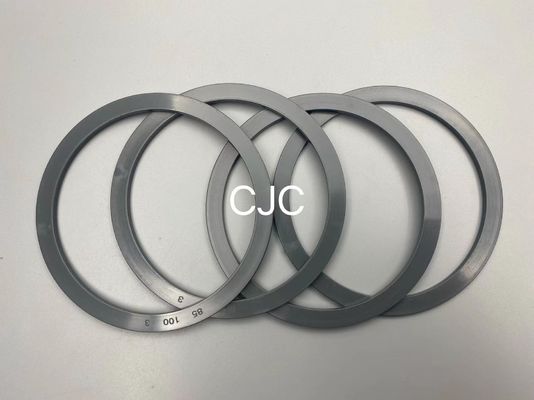

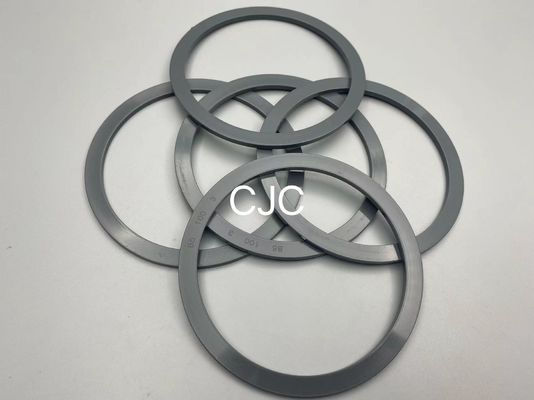

58*100*3 Back Up Ring BRT Wear Resistant Spare Parts Pure PTFE Bronze Filled




Specification


Product Name 58*100*3 Back Up Ring BRT Wear Resistant Spare Parts Pure PTFE Bronze Filled
Function back-up seal ring
Size 58*100*3
Application excavator piston hydraulic cylinder
Feature High pressure Resistance
Style Rod Seal
Usage SEAL KIT
Machinery Excavator
Material PTFE/PTFE+BRONZE
Working Tempereture -40--120℃(according to the material)
Hardness 90-95 Shore A



Excavator Seal Kit Describe



BRT are mechanical seals between two objects, usually to prevent pressure, corrosion and the natural thermal expansion and contraction of the piping between the two objects. As machined surfaces cannot be perfect, gaskets are used to fill irregularities.

BRT are usually made from sheet materials such as rubber, silicone rubber, metal, cork, felt, neoprene, nitrile rubber, glass fibre or plastic polymers such as PTFE. Application-specific gaskets may contain asbestos.





Features


1,The sealing surface of BRT and flange should be cleaned and should not have any defects such as scratches and spots that affect the sealing performance of the connection.

2,The outer diameter of BRT should be smaller than the outer sealing surface of the flange, and the inner diameter of the sealing gasket should be slightly larger than the inner diameter of the pipe, and the difference between the two inner diameters is generally taken as two times of the thickness of the sealing gasket to ensure that the inner edge of the sealing gasket does not extend into the container or pipe after pressing, so as not to hinder the flow of fluid in the container or pipe.

3, BRT pre-tightening force should not exceed the design provisions, so as to avoid excessive compression of the BRT loss of resilience.




Application



Different Types Of Hydraulic Seals
Application Type Material
Rod Seals UN TPU(PU,Polyurethane)
UNS TPU(PU,Polyurethane)
UHS TPU(PU,Polyurethane)
IDU TPU(PU,Polyurethane)
U+S PU+NBR
UPH NBR & FKM
Step Seal NBR+PTFE
VES Rubber+Fabric
IDI PU
ISI PU
Piston Seals SPG NBR+PTFE
SPGW NBR+PTFE
SPGO NBR+PTFE
KDAS NBR+PU+POM
ODI PU
OSI PU
ODU PU
Dust Wiper Seals DH/DHS PU
LBH NBR & FKM
J/JA PU
DKB NBR & FKM +Metal
DKBI PU+Metal
DSI PU
Wear Ring WR Phenolic Fabric
Guide Tape PTFE
Guide Tape Phenolic Fabric
Buffer Seal HBY PU+Nylon
Back-up Ring O-Ring NBR & FKM
X-Ring NBR & FKM
PTFE Washer PTFE
