Heavy Duty Excavator Seal Kit Oil Resistance Anti - Aging Abrasion Resistance

Heavy-Duty OK Seal Excavator Seal Kit Oil Resistance, Anti-Aging, Abrasion Resistance

Specification




Excavator Seal Kit Describe

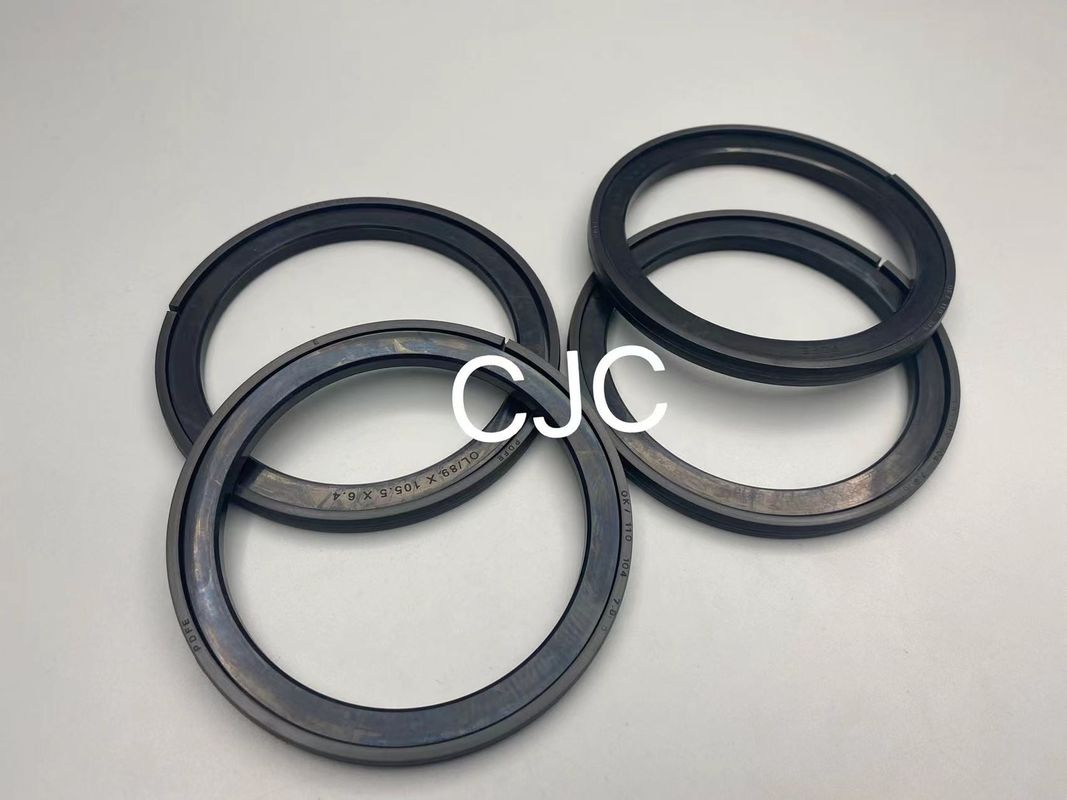

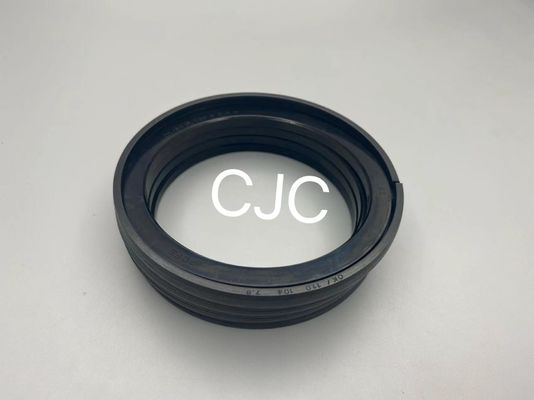

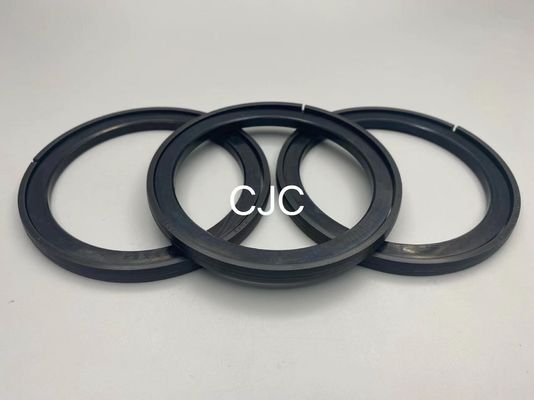

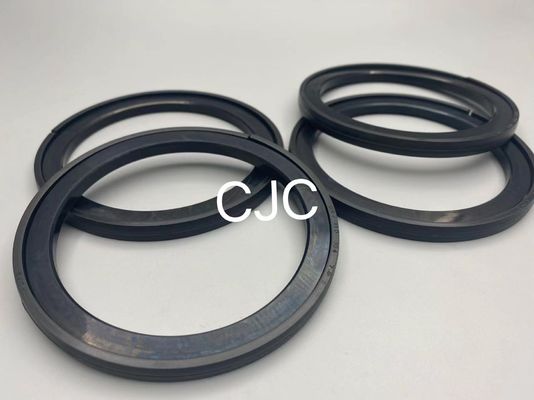

OK seal is a new type of seal, mainly used in the piston seal of the wave pressure cylinder, the seal has two components, one is made of special materials with high hardness of the open seal ring, the other - a rubber rectangular ring can provide elasticity. Since the seal ring adopts open structure,
The problem of special tools required to install the ring is solved. In addition, the seal ring is very hard, not easy to scratch, break, extrusion, so it is easier to install and not easy to damage than the PTFE material seal ring. Material: open seal ring: composite thermoplastic material; rectangular rubber body: nitrile rubber, A70 hardness
Advantages: small installation space, simple groove. Installation is simple and convenient, no need to match tools, can resist shock load, low friction resistance, no sticking phenomenon, excellent resistance to sassafras performance.

Features


OK type piston seals are mainly used in heavy duty hydraulic equipment, particularly for double acting pistons. These seals are suitable for working pressures up to 600 bar and in some cases higher. They are small in shape and resistant to shock loads, with minimal friction on start-up and operation even after long periods of pressure retention. Due to the open structure of the hydraulic cylinder seal, no auxiliary tools are required for installation. Due to the special material properties of the hydraulic cylinder seal, it has a high resistance to extrusion at high pressures and large clearances, and is suitable for grooves of the IS07425-1 international standard. Good resistance to wear and tear.

Application
