Product Details:
|
| Part NO: | SPGO | Medium: | Hydraulic Oil, Water, Emulsions |
|---|---|---|---|
| Feature: | High Efficiency, Long Life | Application: | Hydraulic Oil, Fire Retardant Liquid, Water And Others |
| Catalog: | Oil Seal | Temperature: | -30℃ +200℃ |
| Material: | 40% Bronze Filled PTFE / NBR | Item: | Piston Compact Seals |
| High Light: | 700-80-62350 Glyd Ring,PTFE Glyd Ring,SPGO Filled Glyd Ring |
||

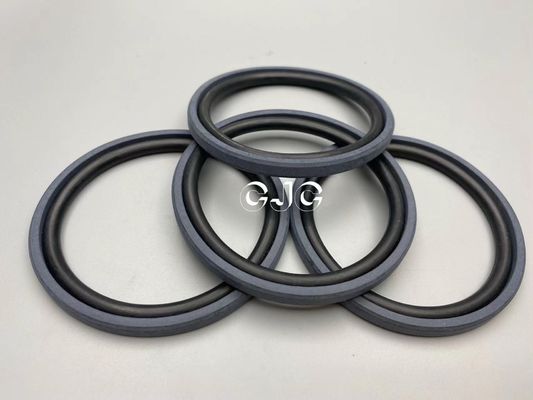

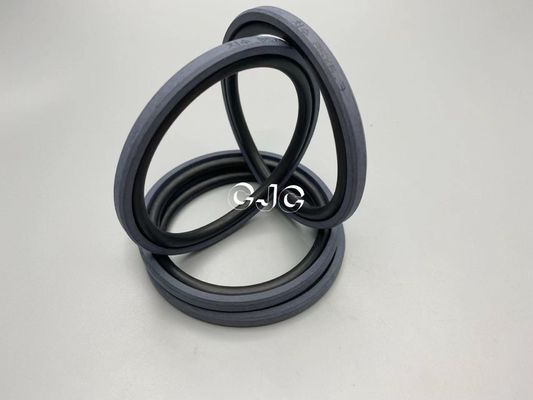

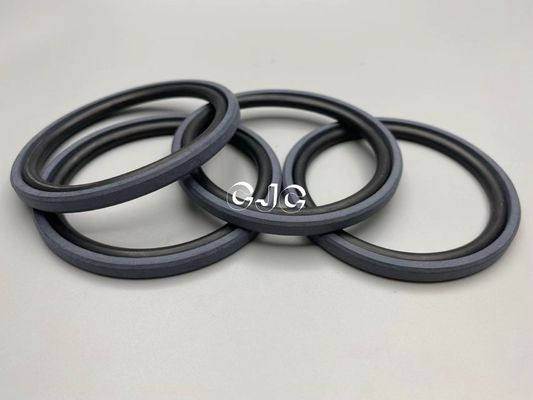

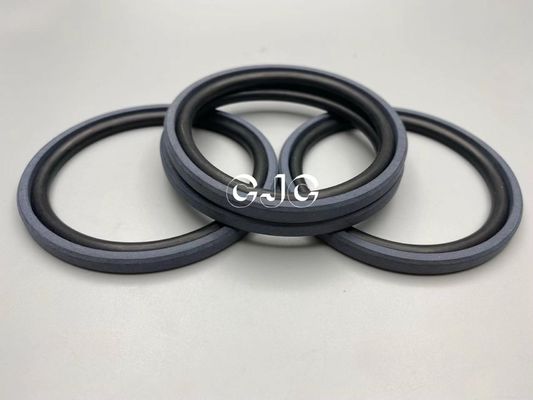

700-80-62350 Glyd Ring SPGO Filled PTFE + NBR For Hydraulic Piston Rod Seals
Specification
| Product Name | 700-80-62350 Glyd Ring SPGO Filled PTFE + NBR For Hydraulic Piston Rod Seals |
| Medium | Hydraulic Oil, Water, Emulsions |
| Color | Black |
| Application | Hydraulic oil, fire retardant liquid, water and others |
| Feature | piston seal |
| Style | Hydraulic |
| Usage | Oil |
| Machinery | Excavator |
| Material | 40% bronze filled PTFE / NBR |
| Working Tempereture | -30℃ +200℃ |
| Item | Piston Compact Seals |
Excavator Seal Kit Describe
SPGO is a low friction piston seal consisting of PTFE+Bronze seal ring and rubber o-ring used for two-way piston seal of Hydraulic cylinder, to seal in fluid, thus preventing the flow of fluid across the piston, allowing pressure to build up on one side of the piston.
Advantage:
1. Good sealing effect in Dynamic and static sealing
2. Minimal start-up and movement friction, no creeping
3. High pressure resistance, High temperature resistance
4. Simple groove structure and easy installation
Features
The double-acting piston sealing set profle PG (SPGO PG4 OMK-MR OE YB) consists of a PTFE piston sealing ring and an elastomer O-ring as a preloading element. Profile PG (SPGO PG4 OMK-MR OE YB) is particularly suitable for double-acting pistons in control cylinders, in servo-cortroled systems, machine tools, quick acting and steering cylinders. The material combination of the slipper ring (PTFE) and the O-ring (elastomer) makes this product suitable for a wide range of applications, especially for aggressive media and/or high temperatures. Multiple compounds can aternatively be selected according to the individual application profile
Application
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
