Product Details:
|
| Part NO: | DKB/DKBI | Temperature: | -40 ~120 (NBR/PU) -20 ~250(FKM) |
|---|---|---|---|
| Feature: | Anti-Dust | Application: | Hydraulic/Machine Rotary Shaft |
| Style: | Hydraulic | Speed: | ≤1/m/s |
| Material: | Rubber+Metal Case | Type: | DKB Wiper Dust Oil Seal |
| High Light: | DKB Iron Dust Oil Seal,Metal Cover Iron Dust Oil Seal,Anti Dust Hydraulic Cylinder O Ring |
||

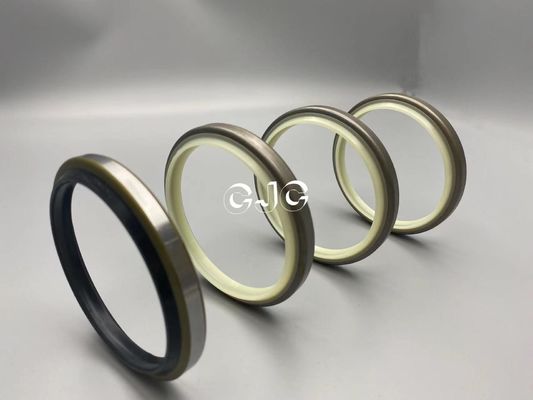

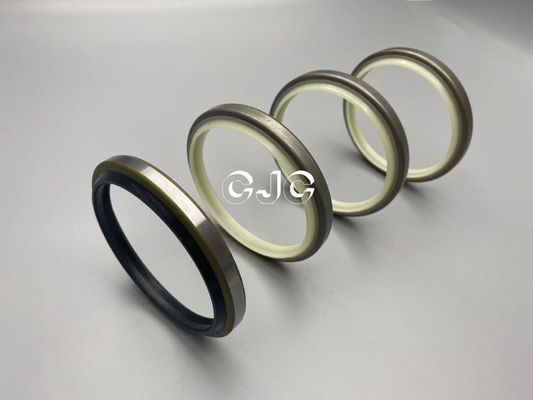

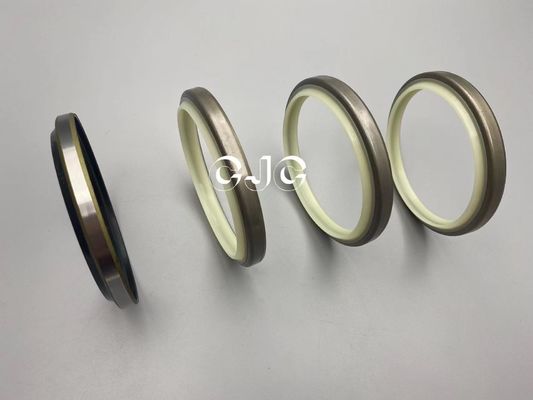

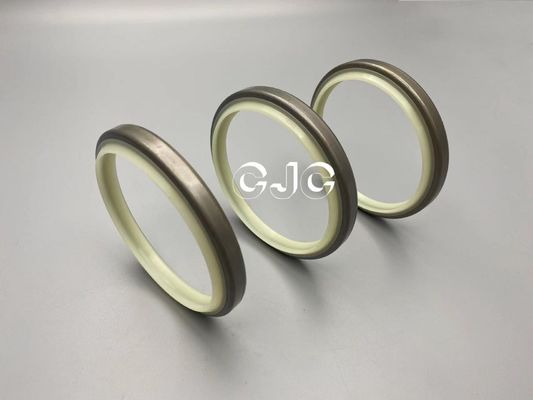

DKB Iron Dust Oil Seal O Ring Metal Cover Case Anti-Dust Hydraulic Cylinder Seal Ring
Specification
| Product Name | DKB Iron Dust Oil Seal O Ring Metal Cover Case Anti-Dust Hydraulic Cylinder Seal Ring |
| Temperature | -40 ~120 (NBR/PU) -20 ~250(FKM) |
| attribute | Wiper Dust Oil Seal |
| Application | Hydraulic/Machine Rotary Shaft |
| Feature | Anti-Dust |
| Style | Hydraulic |
| Using | Oil Guard,Machine sealing |
| Speed | ≤1/m/s |
| Material | Rubber+Metal Case |
| Working Tempereture | -40 ~120 (NBR/PU) -20 ~250(FKM) |
| Type | DKB Wiper Dust Oil Seal |
Excavator Seal Kit Describe
Advantage:
DKB has excellent dust sealing ability. The lip is made of NBRmaterial.
It is molded and adhered on the metal frame, and it fits tightly with the assembly hole. It can prevent the invasion of moisture. An inner lip can reduce the leakage of oil film. It isone of the dust-proof options of the high reliability series sealing system. It is used for dust protection of engineering machinery cylinder.
Features
1.It is applied to hydraulic system from middle load to high load.
2.antiextrusion characteristics is improved greatly.Long service life
3.Good Shape stability ,high wear resistance,good chemical stability
4.Excellent sliding performance,no creeping phenomenon
Do not open the seal package if unnecessary, otherwise the dust will stick to the seal or scratch it.
Store in cool place, not on sunlight place. UV and moisture will accelerate the deterioration of rubber and plastics and dimensional changes
Carefully pack, store unpackaged product, do not glue or put into impurities, keep the original state. Keep the Nylon seal package close to prevent moisture cause dimensional changes
Do not put seals near heat sources, such as boilers, stoves. Otherwise heat will accelerate the aging of seals
Do not put seals near the motor and other place where produces ozone
Do not use a needle, wire, rope hang seals, otherwise, would cause the seal deformation, damage the lip
Sometimes, there are color change or white powder on the seal surface (frost phenomenon), this will not affect the performance of the seal
Application
| Different Types Of Hydraulic Seals | ||
| Application | Type | Material |
| Rod Seals | UN | TPU(PU,Polyurethane) |
| UNS | TPU(PU,Polyurethane) | |
| UHS | TPU(PU,Polyurethane) | |
| IDU | TPU(PU,Polyurethane) | |
| U+S | PU+NBR | |
| UPH | NBR & FKM | |
| Step Seal | NBR+PTFE | |
| VES | Rubber+Fabric | |
| IDI | PU | |
| ISI | PU | |
| Piston Seals | SPG | NBR+PTFE |
| SPGW | NBR+PTFE | |
| SPGO | NBR+PTFE | |
| KDAS | NBR+PU+POM | |
| ODI | PU | |
| OSI | PU | |
| ODU | PU | |
| Dust Wiper Seals | DH/DHS | PU |
| LBH | NBR & FKM | |
| J/JA | PU | |
| DKB | NBR & FKM +Metal | |
| DKBI | PU+Metal | |
| DSI | PU | |
| Wear Ring | WR | Phenolic Fabric |
| Guide Tape | PTFE | |
| Guide Tape | Phenolic Fabric | |
| Buffer Seal | HBY | PU+Nylon |
| Back-up Ring | O-Ring | NBR & FKM |
| X-Ring | NBR & FKM | |
| PTFE Washer | PTFE | |
