Product Details:
|
| Part NO: | SPGO | Medium: | Hydraulic Oil, Fire Retardant Liquid, Water, Gas |
|---|---|---|---|
| Feature: | High Pressure Resistance | Application: | Excavator Piston Hydraulic Cylinder |
| Style: | Hydraulic 2pcs Couple Seal | Color: | Brown+Black |
| Material: | PTFE+40% Bronze+NBR | Use Part: | Cylinder Piston |
| High Light: | BRONZE Hydraulic Cylinder Piston Seals,NBR Hydraulic Cylinder Piston Seals,SPGO Hydraulic Cylinder Piston Seals |
||
700-80-62350 Excavator Seal Kit Hydraulic Piston Seals Couple PTFE BRONZE NBR SPGO
Specification
| Product Name | 700-80-62350 Excavator Seal Kit Hydraulic Piston Seals Couple PTFE BRONZE NBR SPGO |
| Medium | hydraulic oil, fire retardant liquid, water, gas |
| Color | Brown+Black |
| Application | High Efficiency, Long Life |
| Feature | High pressure Resistance |
| Style | Hydraulic 2pcs couple seal |
| Usage | SEAL KIT |
| Machinery | Excavator |
| Material | PTFE+40% Bronze+NBR |
| Working Tempereture | -30 ~ +110℃ |
| Use part | Cylinder Piston |
Excavator Seal Kit Describe

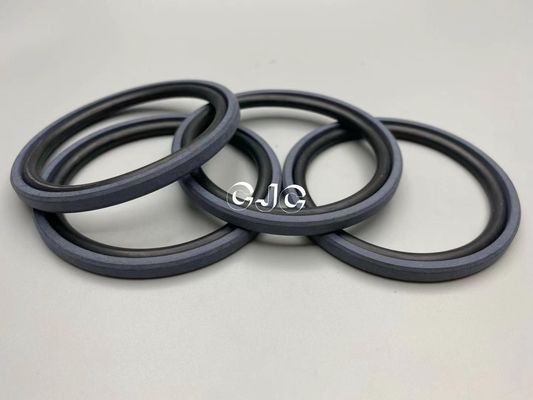

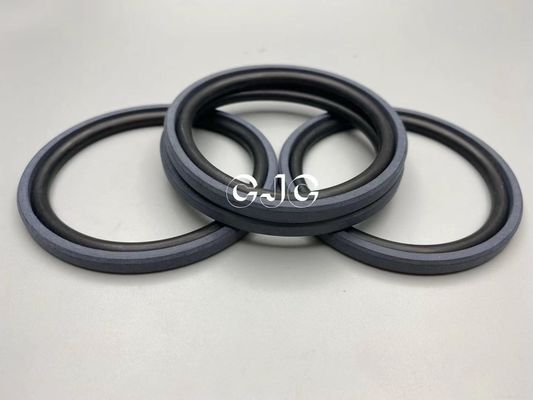

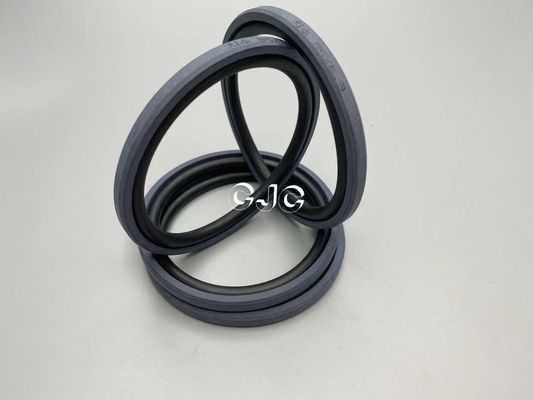

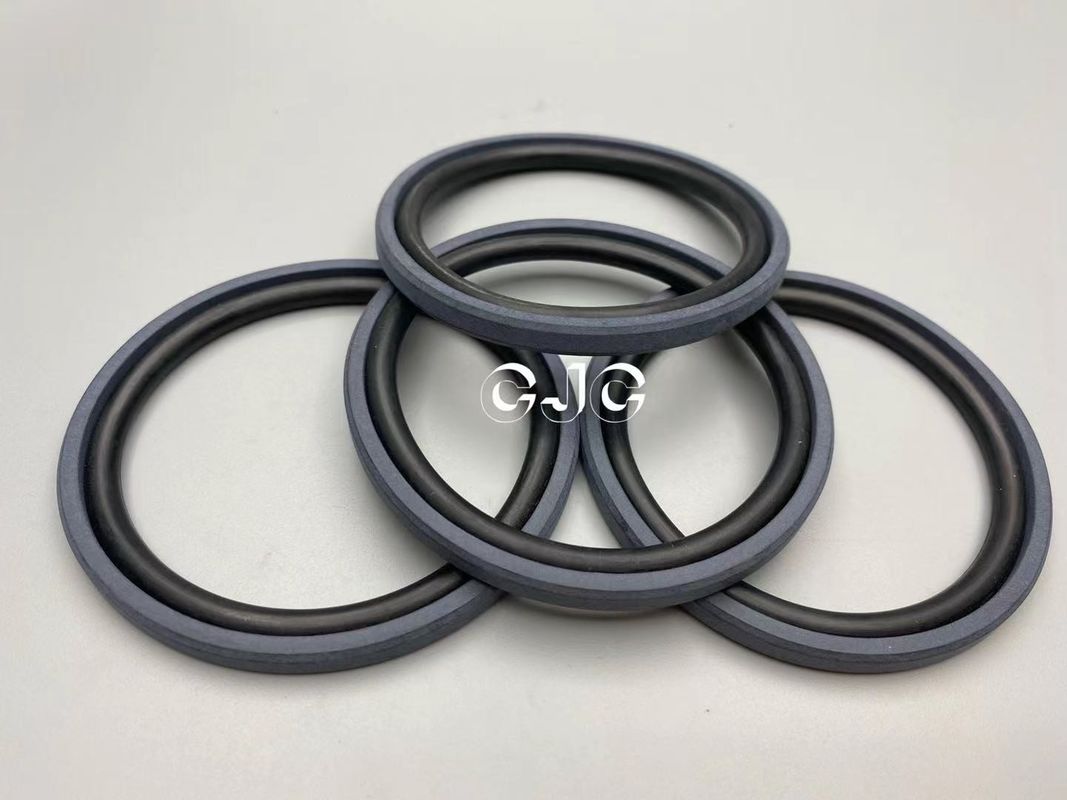

SPGO is a low friction piston seal consisting of PTFE+Bronze seal ring and rubber o-ring used for two-way piston seal of Hydraulic cylinder, to seal in fluid, thus preventing the flow of fluid across the piston, allowing pressure to build up on one side of the piston.
Advantage:
1. Good sealing effect in Dynamic and static sealing
2. Minimal start-up and movement friction, no creeping
3. High pressure resistance, High temperature resistance
4. Simple groove structure and easy installation
Features
1. The sealing ring should have good sealing performance within the working pressure and a certain temperature range, and can automatically improve the sealing performance as the pressure increases.
2. The friction between the sealing ring device and the moving parts should be small, and the friction coefficient should be stable.
3. The sealing ring has strong corrosion resistance, not easy to age, long working life, good wear resistance, and can automatically compensate to a certain extent after wear.
4. Simple structure, convenient use and maintenance, so that the sealing ring has a longer life.
Application
| CA7: | E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450 | |||||||
| KOMATSU: | 10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6 | |||||||
| HITACHI: | UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450 | |||||||
| KOBELCO: | SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450 | |||||||
| SUMITOMO: | SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300 | |||||||
