Product Details:
|
| Part NO: | N4W | Feature: | Oil Resistance |
|---|---|---|---|
| Application: | Excavator Cylinder | Color: | YELLOW ,GREEN,RED |
| Size: | 135*3 | Material: | NBR |
| Item: | Hydraulic Seal | ||
| High Light: | NBR Hydraulic Gasket Seal,N4W Hydraulic Gasket Seal,DH280 O Ring Gasket Kit |
||

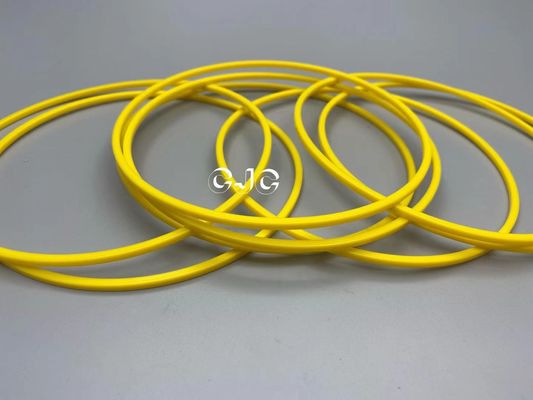

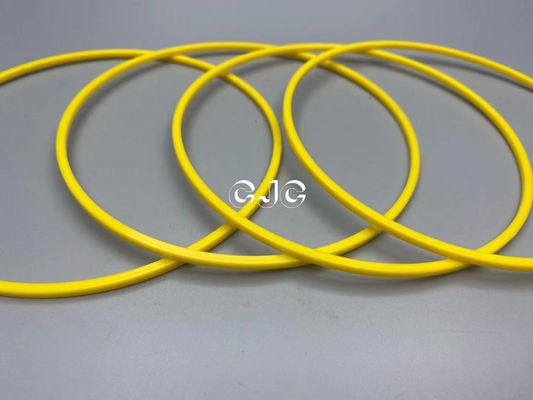

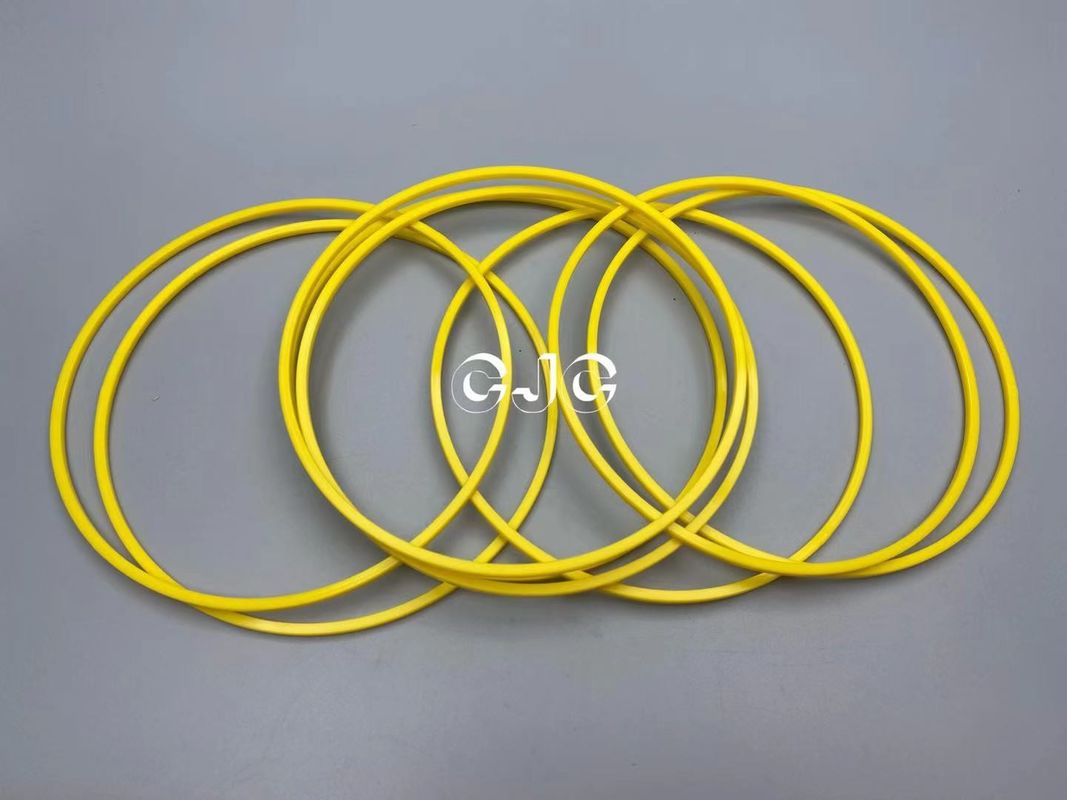

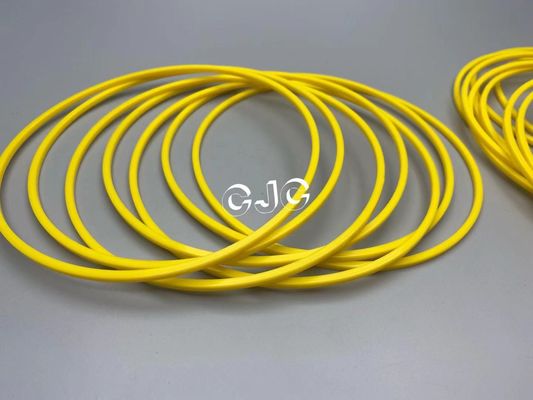

22000139 N4W Excavator Seal Kit Hydraulic Gasket Seal High Wear Resistance
Specification
| Product Name | 22000139 N4W Excavator Seal Kit Hydraulic Gasket Seal High Wear Resistance |
| High Light | cylinder seal kit |
| Size | 135*3 |
| Application | excavator cylinder |
| Feature | Oil Resistance |
| Transport Package | Carton Packing |
| Using | Oil Guard,Machine sealing |
| Machinery | Excavator |
| Material | NY+POM |
| Item | Hydraulic seal |
| Color | YELLOW ,GREEN,RED |
Excavator Seal Kit Describe
Precautions
1. Clean the installation location;
2. Remove the burrs during the installation movement of the seal;
3. Apply lubricant on the seals;
4. Protect the sealing surface from damage;
5. Recheck to confirm that the size of the seal is correct;
6. Use corresponding tools to install the seals that need to be deformed and installed.
Features
1.It is applied to hydraulic system from middle load to high load.
2.antiextrusion characteristics is improved greatly.Long service life
3.Good Shape stability ,high wear resistance,good chemical stability
4.Excellent sliding performance,no creeping phenomenon
Do not open the seal package if unnecessary, otherwise the dust will stick to the seal or scratch it.
Store in cool place, not on sunlight place. UV and moisture will accelerate the deterioration of rubber and plastics and dimensional changes
Carefully pack, store unpackaged product, do not glue or put into impurities, keep the original state. Keep the Nylon seal package close to prevent moisture cause dimensional changes
Do not put seals near heat sources, such as boilers, stoves. Otherwise heat will accelerate the aging of seals
Do not put seals near the motor and other place where produces ozone
Do not use a needle, wire, rope hang seals, otherwise, would cause the seal deformation, damage the lip
Sometimes, there are color change or white powder on the seal surface (frost phenomenon), this will not affect the performance of the seal
Application
| DAEWOO: | DH S55 DH55-5 DH60-7 DH80-7 DH130-5 DH150-7 DH220-2 DH220-3 DH220-5 DH225-7 DH258-7 DH280-3 DH320 DH320-2/3 DH330-3 DH330CL-5 DH450 DH130-7 DH280 | |||||||
| HYUNDAI: | R60-7 R130-5 R130-7 R200 R200-5 R210-3 R210-5 R210-7 R215-7 R220-5 R220-7 R225-7 R260-5 R280-1-N/O R290-1 R290-3 R290-7 R300-5 R300-7 R305-7 R320 R320-3 R320-7 R335LC-7 R420 R450-3 R450-5 | |||||||
Avoid using old seals. When using a new sealing ring, carefully check its surface quality to ensure that there are no defects such as small holes, protrusions, cracks and grooves, and have sufficient elasticity before using it.
When installing, you should strictly clean all parts of the opened hydraulic system. It is best to use special tools to prevent fingers from being scratched by sharp metal edges.
When replacing the sealing ring, check the groove of the sealing ring strictly, remove the dirt, and polish the bottom of the groove.
