707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1

Certification
china Shenzhen LuoX Electric Co., Ltd. certification
china Shenzhen LuoX Electric Co., Ltd. certification
Customer Reviews
We feel very happy during the cooperation with Guangzhou CJC Seals Technology Co.,Ltd.. The company has strong strength, good reputation and high cost performance. They have an excellent professional technical team and can complete the project in time and with quality; They respect our needs and abide by the ethics of taking jobs.

—— Alebel Tadele

I'm Online Chat Now

707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1

707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1
707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1 707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1 707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1 707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1

Large Image :  707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1

Product Details:
Place of Origin: China,Japan
Brand Name: NOK,BFAS,SKF
Certification: ISO9001:2015
Model Number: SPGW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic bag
Delivery Time: 5-8 days
Payment Terms: L/C,, Western Union
Supply Ability: 150000set month

707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1

Description
Part NO: SPGW Keyword: Hydraulic Cylinder Seals
Feature: High Efficiency, Long Life Application: Tractor Piston Seal
Size: Standard, Custom Size Item: SPGW Piston Seal
Material: PTFE/NBR Usage: Hydraulic Sealing, Pneumatic Sealing
Highlight:

707-44-13280 Seal Kit


707-44-13280 SPGW Seal Excavator Seal Kit Hydraulic Piston High Resistance Against Extrusion


Specification


Product Name707-44-13280 SPGW Seal Excavator Seal Kit Hydraulic Piston High Resistance Against Extrusion
Keywordhydraulic cylinder seals
StyleMechanical Seal
ApplicationTractor Piston Seal
FeatureHigh Efficiency, Long Life
Transport PackageCarton Packing
UsingOil Guard,Machine sealing
MachineryExcavator
MaterialPTFE/NBR
ItemSPGW Piston Seal
SizeStandard, Custom Size



Excavator Seal Kit Describe

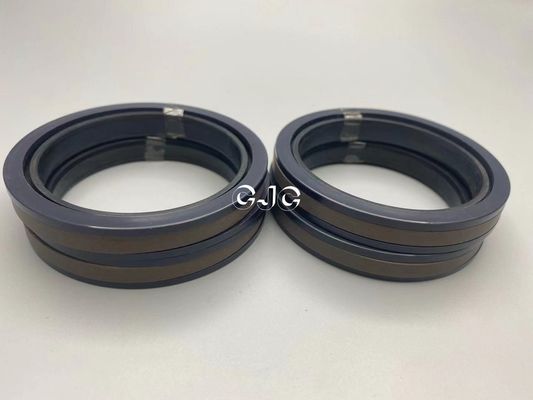

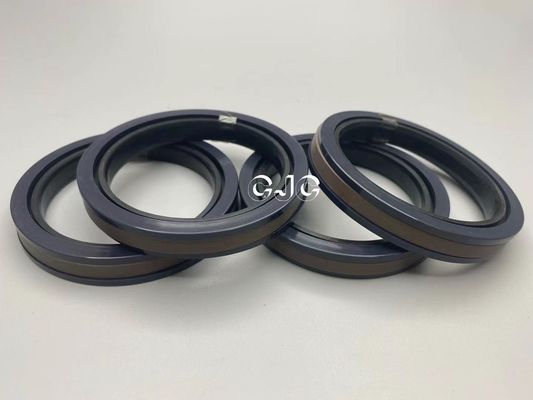

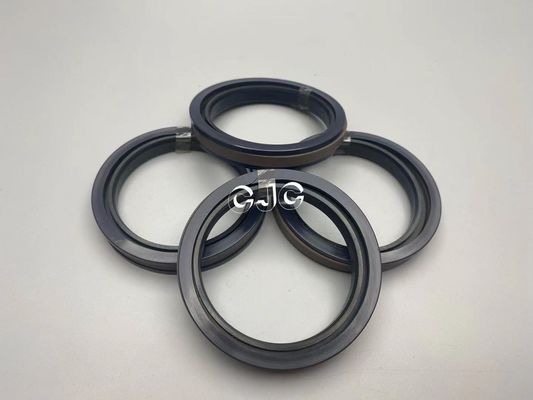

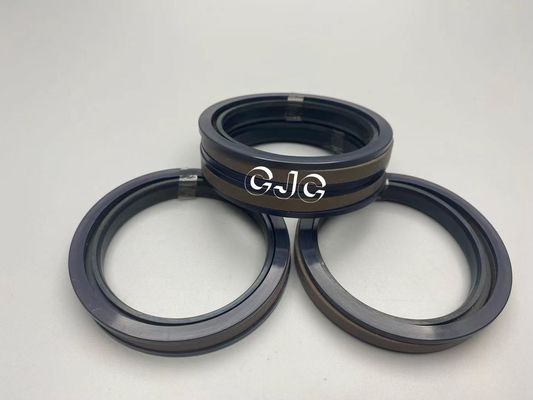

SPGW is double acting hydraulic piston seal. It is a combination of a slipper seal and an energizing square ring.
Advantages:
High static and dynamic sealing effect;
High resistance against extrusion;
Low friction,high efficiency;
Stick-slip free starting,no sticking;
High abrasion resistance,high operational reliability;
Wide range of application temperatures and high resistance to chemicals,depending on the choice of square ring Material.
Application Range:
Standard compact seal for wide application. Design and apply please referring to NOK's SPG series standard.

Characterisstics:
A combination of a based material slipper seal of PTFE with law coefficient of friction, no stick-slip behavior and high wear
resistance. Double sealing performance saves installation space.


Features

Precautions
1. Clean the installation location;
2. Remove the burrs during the installation movement of the seal;
3. Apply lubricant on the seals;
4. Protect the sealing surface from damage;
5. Recheck to confirm that the size of the seal is correct;
6. Use corresponding tools to install the seals that need to be deformed and installed.
For reciprocated hydraulic systems. Possesing excellent performance if applied at heavy load and double sealing under high pressure working conditions. Particularly suitable for long stroke, large range of fuilds and high temperature. Applicable for bigger piston gap. Excellent leakage control, extrusion resistance and wear resistance. Mainly applied to heavy load and engineering machinery, for example: bulldozers, heavy duty hydraulic cylinders.

Application


CA7:E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450
KOMATSU:10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6
HITACHI:UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450
KOBELCO:SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450
SUMITOMO:SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300
KATO:HD250SE-2 HD250-5/7 HD307 HD400SE-2 HD400SEN2 HD400-5/7 HD450-5/7 HD510 HD512 HD550-5/7 HD700-2/5 HD700-7 HD770-1 HD770-2 HD800-5 HD800-7 HD820-1/2/3 HD900-5/7 HD1023 HD1220SE-2 HD1250-5/7 HD1430 HD1880-7 HD900-7 HD880


707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1 0707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1 1707-44-13280 SPGW Excavator Seal Kit Hydraulic Piston Against Extrusion For PC60-1 2
