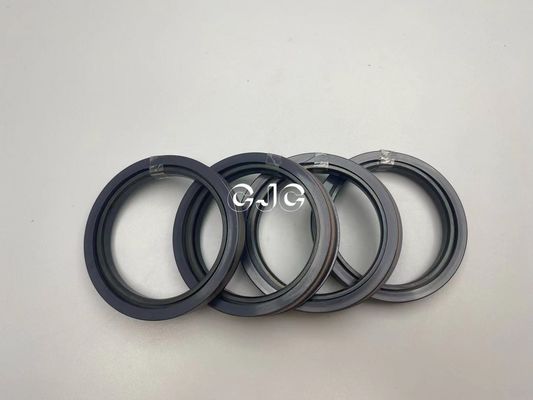

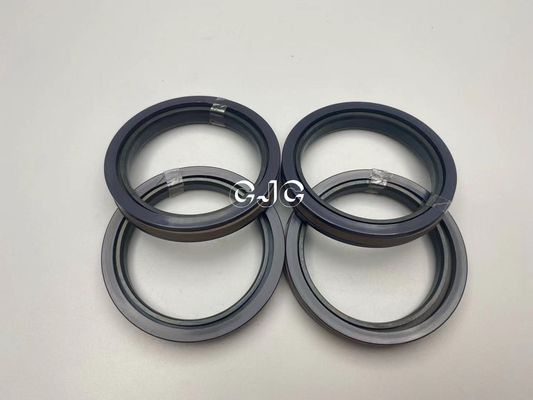

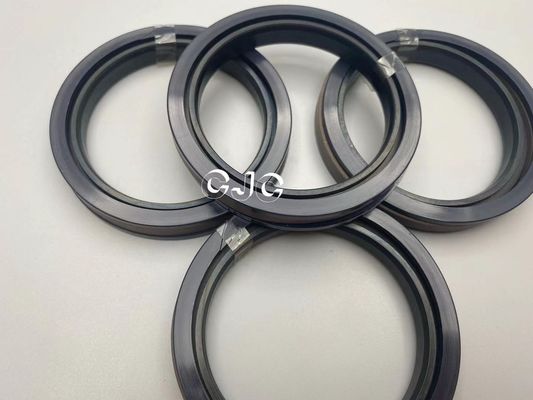

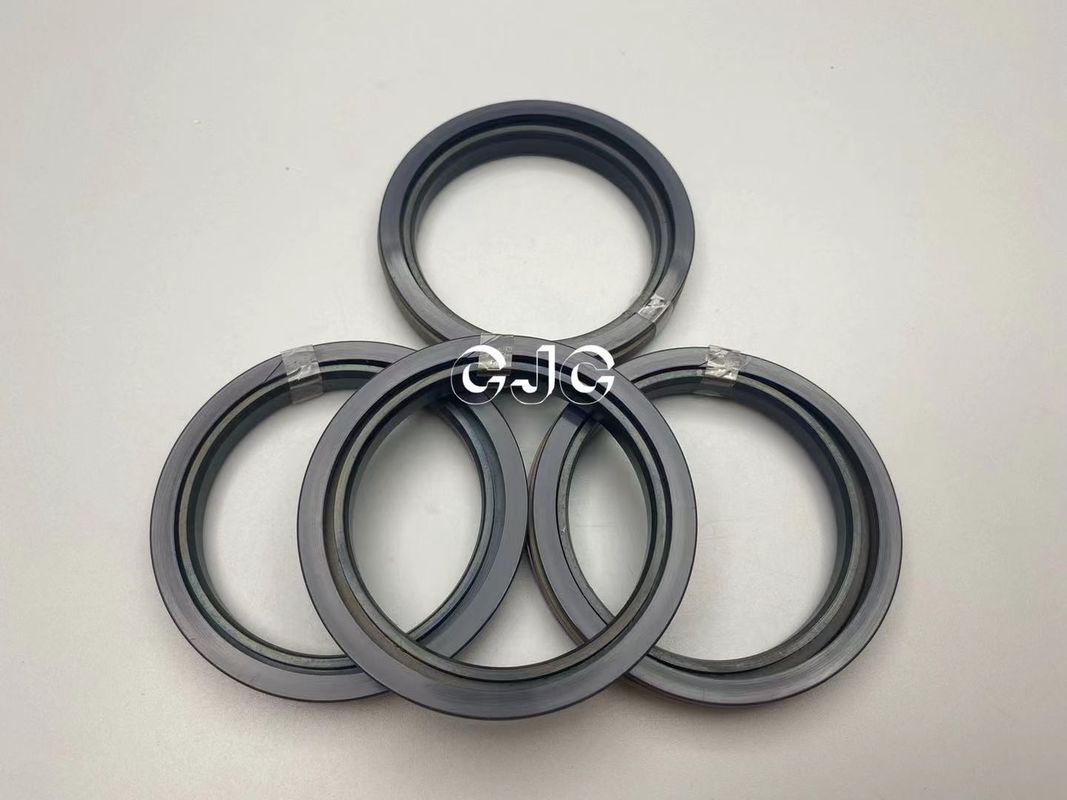

PTFE SPGW Hydraulic Cylinder Piston Seals 707-44-14080 With Pressure Resistance


707-44-14080 SPGW Seal Excavator Seal Kit Hydraulic Piston Seals PTFE Hydraulic Cylinder Seal

Specification



Excavator Seal Kit Describe

The combined sealing ring is a double-acting piston sealing ring, two retaining rings and two wear rings. There is a sealing element in the middle, which really plays a role of sealing. Place a retaining ring and a wear ring on each side. The retaining ring prevents the sealing ring from being squeezed into the gap. The sealing ring in the middle is a toothed sealing ring, which can play a good sealing role when it is still and in motion. The function of the wear ring is to guide the piston in the cylinder and bear the radial force.


Features


Precautions

1. Clean the installation location;

2. Remove the burrs during the installation movement of the seal;

3. Apply lubricant on the seals;

4. Protect the sealing surface from damage;

5. Recheck to confirm that the size of the seal is correct;

6. Use corresponding tools to install the seals that need to be deformed and installed.

For reciprocated hydraulic systems. Possesing excellent performance if applied at heavy load and double sealing under high pressure working conditions. Particularly suitable for long stroke, large range of fuilds and high temperature. Applicable for bigger piston gap. Excellent leakage control, extrusion resistance and wear resistance. Mainly applied to heavy load and engineering machinery, for example: bulldozers, heavy duty hydraulic cylinders.

Application
