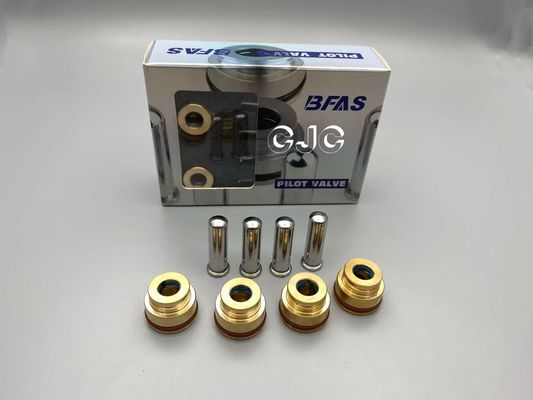

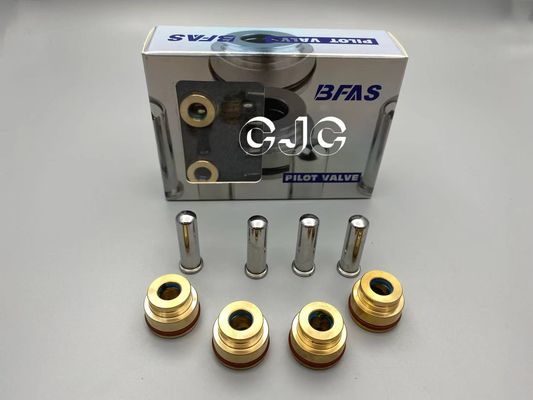

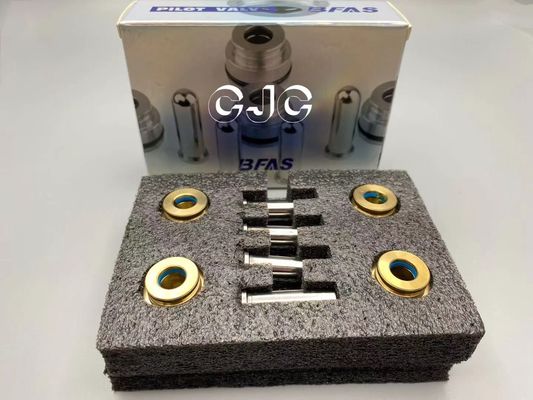

PC-6 Hydraulic Control Valve Part Pusher , Steel Excavator Spare Parts For Handle

PC-6 Hydraulic Pilot Valve Excavator Handle High Density High Efficiency

Specification

Application

CA7: E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450

KOMATSU: 10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6

HITACHI: UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450

KOBELCO: SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450

SUMITOMO: SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300

KATO: HD250SE-2 HD250-5/7 HD307 HD400SE-2 HD400SEN2 HD400-5/7 HD450-5/7 HD510 HD512 HD550-5/7 HD700-2/5 HD700-7 HD770-1 HD770-2 HD800-5 HD800-7 HD820-1/2/3 HD900-5/7 HD1023 HD1220SE-2 HD1250-5/7 HD1430 HD1880-7 HD900-7 HD880

VOLVO: EC210B EC240B EC290B EC320C EC360B EC460B

DAEWOO: DH S55 DH55-5 DH60-7 DH80-7 DH130-5 DH150-7 DH220-2 DH220-3 DH220-5 DH225-7 DH258-7 DH280-3 DH320 DH320-2/3 DH330-3 DH330CL-5 DH450 DH130-7 DH280

HYUNDAI: R60-7 R130-5 R130-7 R200 R200-5 R210-3 R210-5 R210-7 R215-7 R220-5 R220-7 R225-7 R260-5 R280-1-N/O R290-1 R290-3 R290-7 R300-5 R300-7 R305-7 R320 R320-3 R320-7 R335LC-7 R420 R450-3 R450-5

Hydraulic Pilot Valve Describe

Hydraulic pilot valves have a predetermined pressure setting that dictates when the pilot valve opens and closes. As pressure builds up around the pilot valve, the pressure sensor determines when the valve should open. The pilot valve will then release hydraulic fluid into the other valves until the pressure setting is below the maximum pressure. The secondary valves are completely dependent on the pilot valve. If the pilot breaks or malfunctions in any way, the entire hydraulic system becomes unusable.

A hydraulic system is powered by a pump designed to provide a certain amount of continuous pressure. A bigger and more powerful pump can pump hydraulic fluid faster, but it also uses a lot more energy. A hydraulic accumulator is a system which stores pressurized hydraulic fluid. That way, the pump does not have to be powerful enough to cope with a sudden surge in demand. Instead, it can keep steadily pumping hydraulic fluid and rely on the accumulator to provide extra hydraulic fluid when it is needed.

Features

Precautions

1. Clean the installation location;

2. Remove the burrs during the installation movement of the seal;

3. Apply lubricant on the seals;

4. Protect the sealing surface from damage;

5. Recheck to confirm that the size of the seal is correct;

6. Use corresponding tools to install the seals that need to be deformed and installed.

Advantages

1. The sealing ring should have good sealing performance within the working pressure and a certain temperature range, and can automatically improve the sealing performance as the pressure increases.

2. The friction between the sealing ring device and the moving parts should be small, and the friction coefficient should be stable.

3. The sealing ring has strong corrosion resistance, not easy to age, long working life, good wear resistance, and can automatically compensate to a certain extent after wear.

4. Simple structure, convenient use and maintenance, so that the sealing ring has a longer life.
