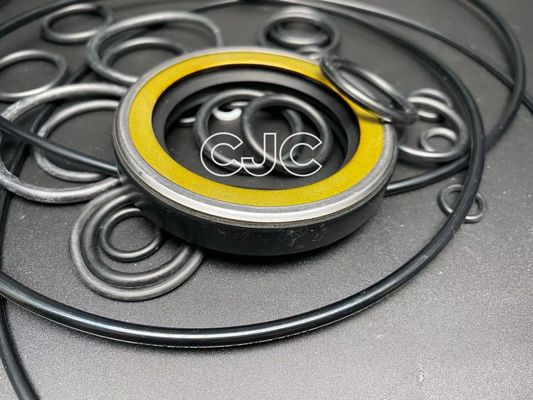

Hydraulic Motor Seal Kit Excavator Travel Motor Seal Kit Heat Resistance
Specification
|
Product name
|
Hydraulic Motor Seal Kit Excavator Travel Motor Seal Kit Heat Resistance
|
|
Style
|
Mechanical Seal
|
|
Feature
|
Heat resistance, good elasticity
|
|
Quality
|
High Guarantee
|
|
Applicable Industries
|
Machinery Repair Shops, Construction works , Energy & Mining
|
|
Keyword
|
hydraulic travel motor seal kit o ring kit
|
|
Working Tempereture
|
-40--120℃(according to the material)
|
|
Size
|
standard
|
|
Quality
|
High Performance
|
|
Packing
|
paper and carton
|
|
Application
|
Excavator Travel Motor
|
|
Delivery Time
|
5-15 days after payment
|
Hydraulic Motor Seal Kit Describe
The combined sealing ring is a double-acting piston sealing ring, two retaining rings and two wear rings. There is a sealing element in the middle, which really plays a role of sealing. Place a retaining ring and a wear ring on each side. The retaining ring prevents the sealing ring from being squeezed into the gap. The sealing ring in the middle is a toothed sealing ring, which can play a good sealing role when it is still and in motion. The function of the wear ring is to guide the piston in the cylinder and bear the radial force.
Do not open the seal package if unnecessary, otherwise the dust will stick to the seal or scratch it.
Store in cool place, not on sunlight place. UV and moisture will accelerate the deterioration of rubber and plastics and dimensional changes
Carefully pack, store unpackaged product, do not glue or put into impurities, keep the original state. Keep the Nylon seal package close to prevent moisture cause dimensional changes
Do not put seals near heat sources, such as boilers, stoves. Otherwise heat will accelerate the aging of seals
Do not put seals near the motor and other place where produces ozone
Do not use a needle, wire, rope hang seals, otherwise, would cause the seal deformation, damage the lip
Sometimes, there are color change or white powder on the seal surface (frost phenomenon), this will not affect the performance of the seal
Features
When installing, you should strictly clean all parts of the opened hydraulic system. It is best to use special tools to prevent fingers from being scratched by sharp metal edges.
When replacing the sealing ring, check the groove of the sealing ring strictly, remove the dirt, and polish the bottom of the groove.
In order to prevent damage and cause oil leakage, it must be operated in accordance with the regulations. At the same time, the machine cannot be overloaded for a long time or run in a relatively harsh environment.
Precautions
1. Clean the installation location;
2. Remove the burrs during the installation movement of the seal;
3. Apply lubricant on the seals;
4. Protect the sealing surface from damage;
5. Recheck to confirm that the size of the seal is correct;
6. Use corresponding tools to install the seals that need to be deformed and installed.
Scope of use
Hardware and plastics, water supply and drainage, HVAC, fire fighting, pharmaceuticals, ships, and other pipeline systems, automobiles, motorcycles, various machinery, household appliances, electronics, toys, sports equipment, pneumatic components and sanitary ware, etc.
Application
Our Advantages:
1. Factory direct sale
2. Have ready stocks,any size is available
3. Samples are acceped
4. Perfect after-sale service
5. Good abrasion resistance
6. High quality and competitive price
7. Excellent sliding performance, no creeping phenomenon
8. Good shape stability, long service life.
9. High wear resistance,good chemical stability, anti-extrusion characteristics is improved greatly.
