Product Details:
|
| Part NO: | AP2388E | Temperature: | -40 ~+260 |
|---|---|---|---|
| Feature: | Double Lips & Spring | Material: | NBR FKM Rubber |
| Application: | Vehicles, Mining, Industrial Machineryetc. | Type: | TC Type Oil Seal |
| Item: | Security Protect Seals | Hardness: | 30-90 Shore |
| High Light: | NBR Shaft Skeleton Oil Seal,706-7G-11291 Skeleton Oil Seal,AP2388E Skeleton Oil Seal |
||

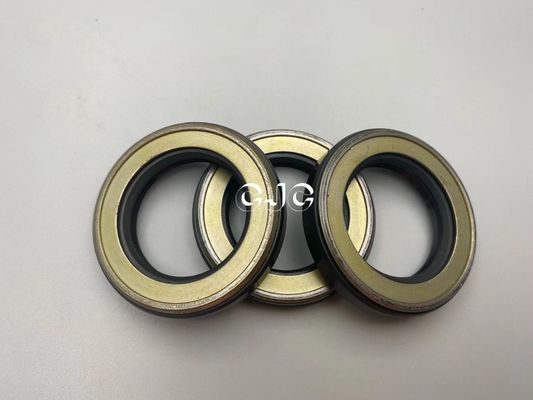

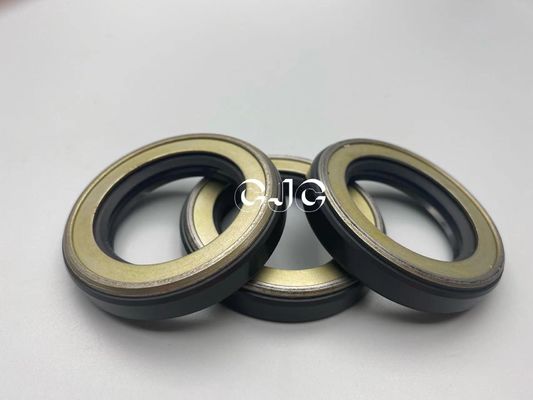

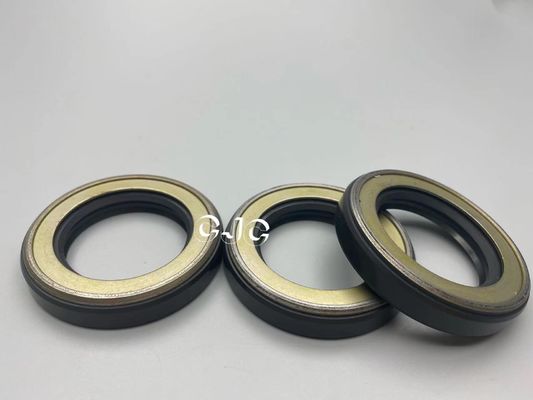

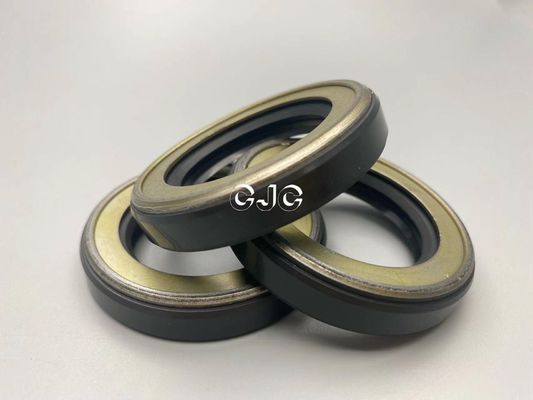

706-7G-11291 Shaft Oil Seal Skeleton Oil Seal NBR FKM Rubber TC Oil Seal For AP2388E
Specification
| Product Name | 706-7G-11291 Shaft Oil Seal Skeleton Oil Seal NBR FKM Rubber TC Oil Seal For AP2388E |
| Function | Double Lips & Spring |
| Temperature | -40 ~+260 |
| Hardness | 30-90 Shore |
| Feature | Double Lips & Spring |
| Material | NBR FKM Rubber |
| Application | vehicles, mining, industrial machineryetc. |
| Type | TC Type Oil Seal |
| Payment | TT/ Western Union/ Pay on line |
| Feature | Seal industry |
Skeleton Oil Seal describe
The role of the skeleton oil seal is generally to isolate the parts that need lubrication in the transmission parts from the output parts so as not to leak the lubricant.
Rotary shaft, a rotary shaft lip seal. The skeleton is just like the reinforcing steel inside the concrete structure, which plays a reinforcing role and allows the oil seal to maintain its shape and tension. According to the skeleton type, it can be divided into inner skeleton oil seal, outer skeleton oil seal, and inner and outer skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobiles, motorcycle crankshafts, camshafts, differentials, shock absorbers, engines, axles, front and rear wheels and other parts.
Features
Attention should be paid to the installation and use of sealing ring:
Can not install the wrong direction and damage the lips. If there are scars above 50μm on the lips, it may cause obvious oil leakage.
Prevent forced installation. Do not use a hammer to knock in, but use a special tool to first press the sealing ring into the seat hole, and then use a simple cylinder to protect the lip through the spline. Before installation, apply some lubricating oil to the lips to facilitate installation and prevent burns during initial operation. Pay attention to cleaning.
Prevent overdue use. The service life of rubber seals for dynamic seals is generally 3000～5000h, and new seals should be replaced in time.
Our advantages:
1. Our own factory,direct sale
2. Each size is available
3. Advanced equipment
4. High effective team
5. Good abrasion resistance
6. Long service life and easy to install
7. Good dynamic sealing
8. Low wear,low friction
Application
| CA7: | E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450 | |||||||
| KOMATSU: | 10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6 | |||||||
| HITACHI: | UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450 | |||||||
| KOBELCO: | SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450 | |||||||
| SUMITOMO: | SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300 | |||||||
