Product Details:
|
| Part NO: | AP2388E | Used Temperature: | -25-300 |
|---|---|---|---|
| Feature: | Oil Resistance | Material: | Rubber/PTFE/NBR/FKM/Silicone |
| Application: | Engineering Machinery | Type: | Mechanical Seal |
| Keyword: | Mechanical Shaft Seal | Usage: | Heavy Truck |
| High Light: | 703-11-96520 Oil Seal,Heavy Truck Skeleton Oil Seal,TCN Oil Seal Oil Resistance |
||

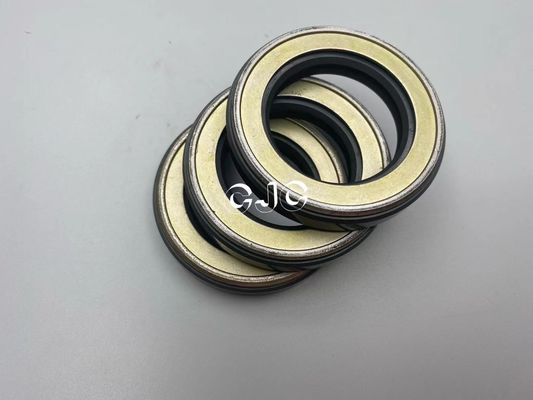

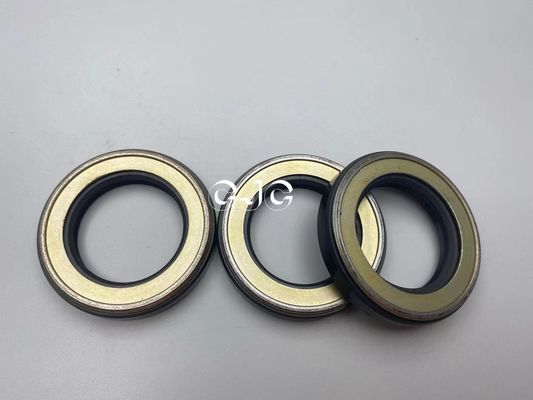

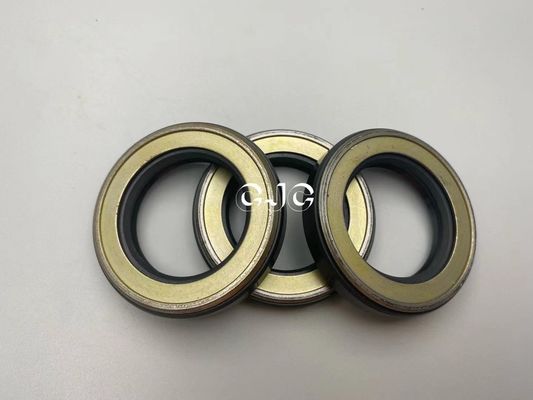

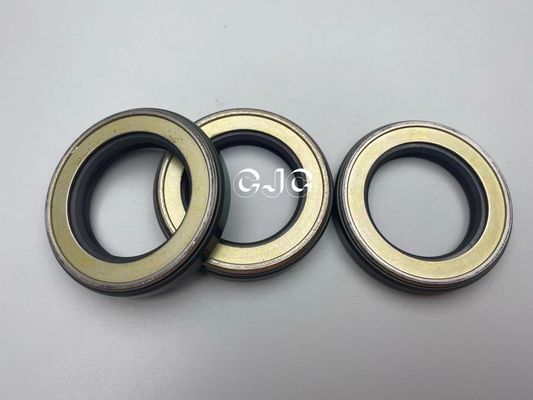

703-11-96520 Skeleton Oil Seal Excavator Hydraulic Cylinder Skeleton Seal TCN Oil Seal
Specification
| Product Name | 703-11-96520 Skeleton Oil Seal Excavator Hydraulic Cylinder Skeleton Seal TCN Oil Seal |
| Usage | Heavy truck |
| Used temperature | -25-300 |
| Hardness | 30-90 Shore |
| Feature | Seal industry |
| Material | Rubber/PTFE/NBR/FKM/Silicone |
| Application | engineering machinery |
| Keyword | Mechanical shaft seal |
| Payment | TT/ Western Union/ Pay on line |
| Feature | Oil Resistance |
Skeleton Oil Seal describe
Oil Seals are used in the machines for oil proof. From the structure of the product, it can be classified into two types: single lip Skeleton oil seals and double lips Skeleton oil seals. They are widely used in the rod of machines' engines, usually are used to prevent the oil leaking and the dirt outside.
The representative form of oil seal is TC oil seal, which is a kind of double lip oil seal with self-tightening spring which is completely covered by rubber. Generally speaking, oil seal is often referred to as this TC skeleton oil seal.
Features
Attention should be paid to the installation and use of sealing ring:
Can not install the wrong direction and damage the lips. If there are scars above 50μm on the lips, it may cause obvious oil leakage.
Prevent forced installation. Do not use a hammer to knock in, but use a special tool to first press the sealing ring into the seat hole, and then use a simple cylinder to protect the lip through the spline. Before installation, apply some lubricating oil to the lips to facilitate installation and prevent burns during initial operation. Pay attention to cleaning.
Prevent overdue use. The service life of rubber seals for dynamic seals is generally 3000～5000h, and new seals should be replaced in time.
Our advantages:
1. Our own factory,direct sale
2. Each size is available
3. Advanced equipment
4. High effective team
5. Good abrasion resistance
6. Long service life and easy to install
7. Good dynamic sealing
8. Low wear,low friction
Application
| CA7: | E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450 | |||||||
| KOMATSU: | 10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6 | |||||||
| HITACHI: | UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450 | |||||||
| KOBELCO: | SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450 | |||||||
| SUMITOMO: | SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300 | |||||||
