Product Details:
|
| Part NO: | AP2388E | Temperature: | 40 ~ 120 (NBR) -20 ~250 (FKM) |
|---|---|---|---|
| Feature: | Oil Resistance | Material Type: | PTFE |
| Application: | Vehicles, Mining, Industrial Machineryetc. | Usage: | Engine, Transmission, Rear Axle |
| Function: | Sealing Effect | Hardness: | 20-90 Shore |
| High Light: | FKM Shaft Oil Seal,NBR Shaft Oil Seal,Rotary Oil Seal Rear Axle |
||

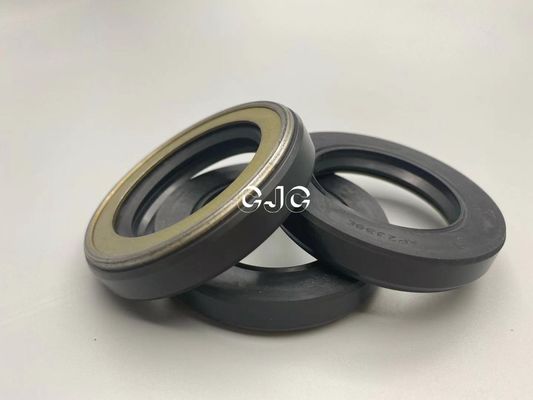

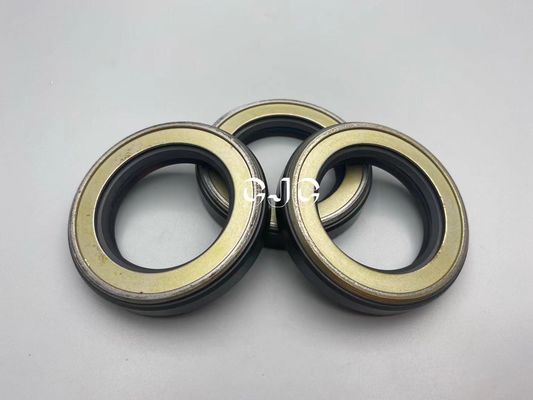

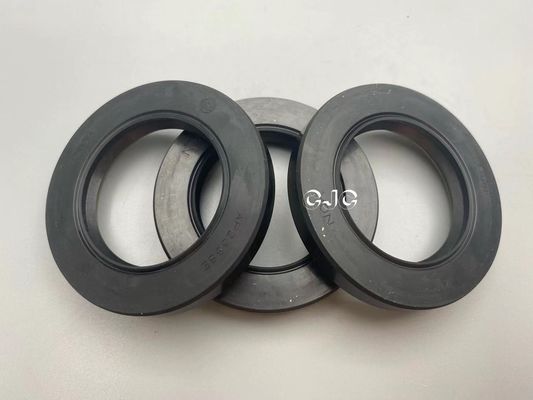

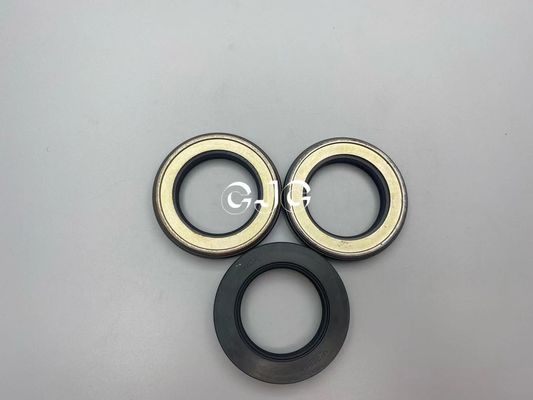

706-7G-11291 AP2388E Skeleton Oil Seal NBR FKM Rubber OilSeal Abrasion Resistant
Specification
| Product Name | 706-7G-11291 AP2388E Skeleton Oil Seal NBR FKM Rubber OilSeal Abrasion Resistant |
| Function | Sealing Effect |
| Temperature | 40 ~ 120 (NBR) -20 ~250 (FKM) |
| Hardness | 20-90 Shore |
| Feature | Oil Resistance |
| Packing | PP bag / box packing / Genuine |
| Application | vehicles, mining, industrial machineryetc. |
| Delivery Time | In 2-5 days after payment |
| Payment | TT/ Western Union/ Pay on line |
| Feature | Sealing Performance |
Skeleton Oil Seal describe
Rubber skeleton oil seals generally refer to rotary shaft lip seals, also called shaft seals. In addition, there are reciprocating rubber skeleton oil seals such as shock absorber oil seals and stem oil seals. There is also an oil seal between the two, that is, the rubber seal has both a rotating and reciprocating skeleton oil seal, such as an ultra-high pressure oil seal on a hydraulic motor and a steering machine.
Rubber skeleton oil seals come in many forms, except for the inner skeleton, the exposed skeleton, and the assembled double skeleton oil seal.
Features
Attention should be paid to the installation and use of sealing ring:
Can not install the wrong direction and damage the lips. If there are scars above 50μm on the lips, it may cause obvious oil leakage.
Prevent forced installation. Do not use a hammer to knock in, but use a special tool to first press the sealing ring into the seat hole, and then use a simple cylinder to protect the lip through the spline. Before installation, apply some lubricating oil to the lips to facilitate installation and prevent burns during initial operation. Pay attention to cleaning.
Prevent overdue use. The service life of rubber seals for dynamic seals is generally 3000～5000h, and new seals should be replaced in time.
Our advantages:
1. Our own factory,direct sale
2. Each size is available
3. Advanced equipment
4. High effective team
5. Good abrasion resistance
6. Long service life and easy to install
7. Good dynamic sealing
8. Low wear,low friction
Application
The role of the skeleton oil seal is generally to isolate the parts that need lubrication in the transmission parts from the output parts so as not to leak the lubricant.
Rotary shaft, a rotary shaft lip seal. The skeleton is just like the reinforcing steel inside the concrete structure, which plays a reinforcing role and allows the oil seal to maintain its shape and tension. According to the skeleton type, it can be divided into inner skeleton oil seal, outer skeleton oil seal, and inner and outer skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobiles, motorcycle crankshafts, camshafts, differentials, shock absorbers, engines, axles, front and rear wheels and other parts.
