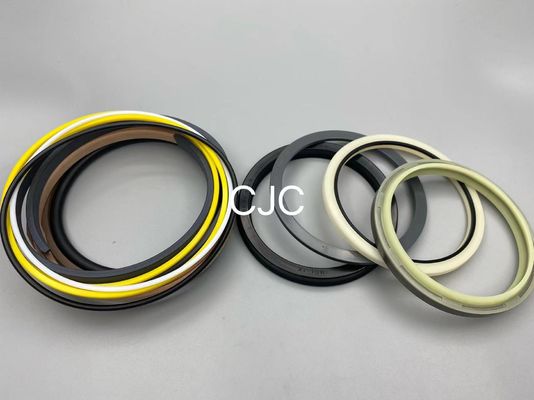

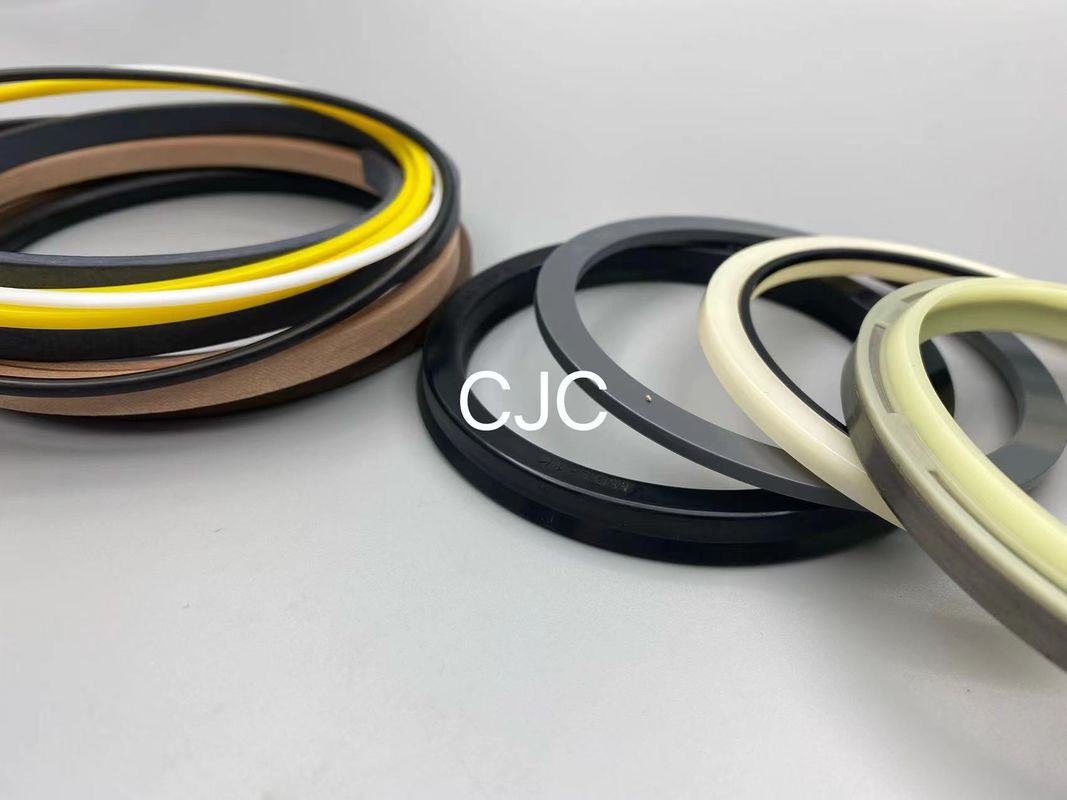

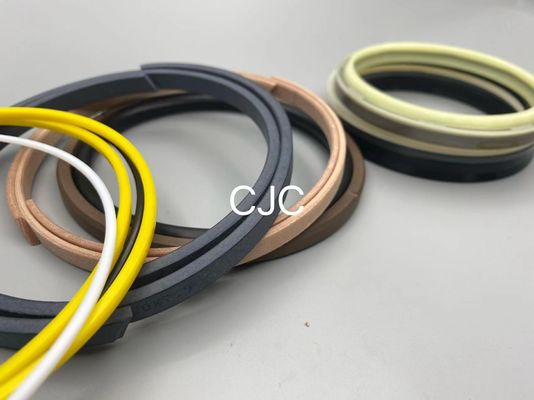

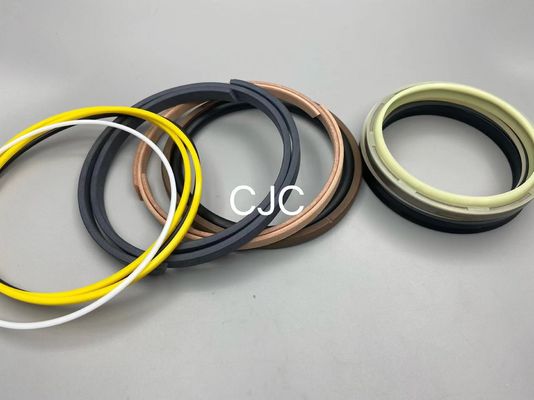

707-99-76260 Hydraulic Cylinder Seal Kit FKM NBR Material

707-99-76260 Hydraulic Cylinder Seal Kit Voltage Resistance Excavator Seal Kits

Specification

Hydraulic cylinder seal kit Describe

Hydraulic seals are generally relatively soft, non-metallic rings captured in groove or fixed in a combination of rings, forming a seal assembly, to block or separate fluid in reciprocating motion applications. Hydraulic seals are vital in machinery. Their use is critical in providing a way for fluid power to be converted to linear motion.

Hydraulic seals can be made from a variety of materials such as polyurethane, rubber or PTFE. The type of material is determined by the specific operating conditions or limits due to fluid type, pressure, fluid chemical compatibility or temperature.

A static hydraulic seal is located in a groove and sees no movement – only sealing within its confined space, acting like gasket.

A type of dynamic hydraulic seal called a rod seal is exposed to movement on its inner diameter along the shaft or rod of a hydraulic cylinder. A type of dynamic hydraulic seal called a piston seal is exposed to movement on its outer diameter along the tube or bore of a hydraulic cylinder.

Features

Hydraulic cylinders get their power from pressurized hydraulic fluid, which is typically oil. The hydraulic cylinder consists of a cylinder barrel, in which a piston connected to a piston rod moves back and forth. The barrel is closed on one end by the cylinder bottom (also called the cap) and the other end by the cylinder head (also called the gland) where the piston rod comes out of the cylinder. The piston has sliding rings and seals. The piston divides the inside of the cylinder into two chambers, the bottom chamber (cap end) and the piston rod side chamber (rod end/head-end).

Flanges, trunnions, clevises, and lugs are common cylinder mounting options. The piston rod also has mounting attachments to connect the cylinder to the object or machine component that it is pushing or pulling.

A hydraulic cylinder is the actuator or "motor" side of this system. The "generator" side of the hydraulic system is the hydraulic pump which delivers a fixed or regulated flow of oil to the hydraulic cylinder, to move the piston. There are three types of pump widely used: hydraulic hand pump, hydraulic air pump, and hydraulic electric pump.

Application
