Product Details:
|
| Part NO: | WR | Product Name: | WR Hydraulic Wear Ring |
|---|---|---|---|
| Feature: | Oil Resistance/Abrasion Resistant | Application: | Excavators,Standard Cylinders,Mobile Hydraulics |
| Size: | Various | Type: | Rubber Materials |
| Material: | Phenolic Resin | Style: | Mechanical Seal |
| High Light: | EX100 Hydraulic Cylinder Guide Ring,EX60 Hydraulic Cylinder Guide Ring,EX120 Hydraulic Guide Ring |
||

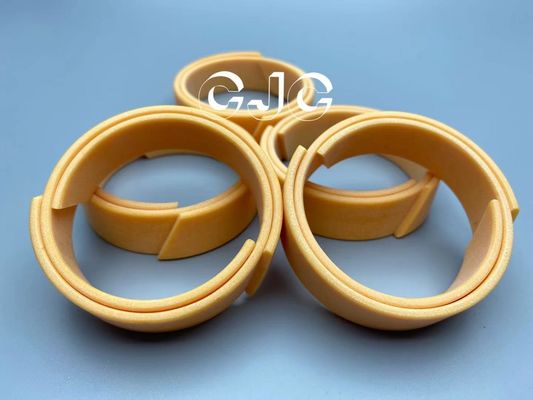

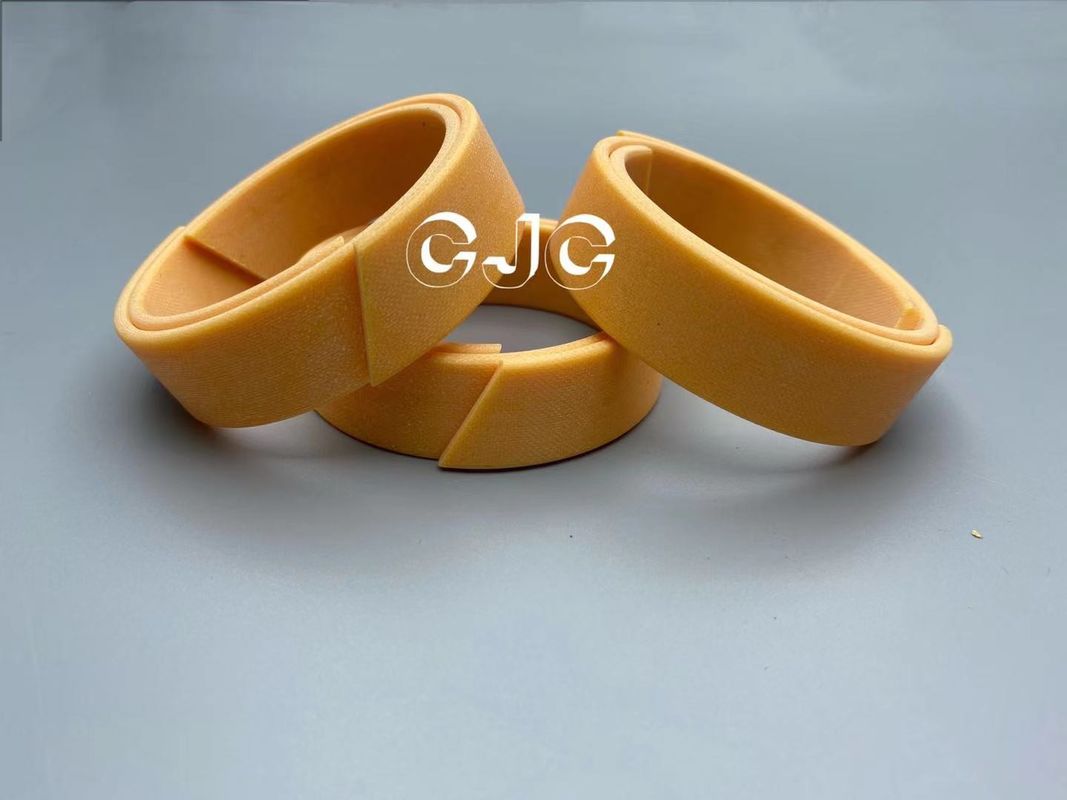

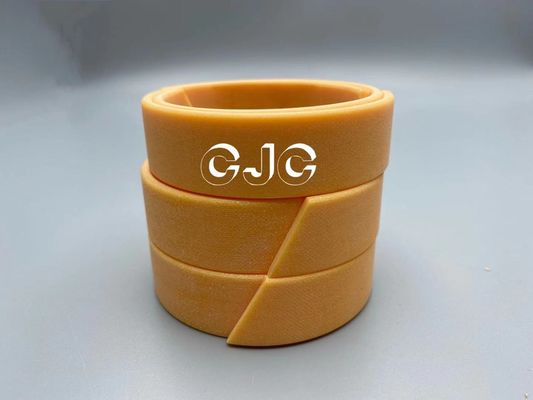

07156-00912 Hydraulic Cylinder Guide Ring Phenolic Fabric Resin Wear Ring Floating Oil Seal
Specification
|
Product name
|
07156-00912 Hydraulic Cylinder Guide Ring Phenolic Fabric Resin Wear Ring Floating Oil Seal |
|
Material
|
phenolic resin
|
|
Surface
|
smooth or empaistic
|
|
Type
|
WR,Wear Ring
|
|
Size
|
Various
|
|
Feature
|
Sealing Performance
|
|
Style
|
Mechanical Seal
|
|
Application
|
Excavators,Standard cylinders,Mobile hydraulics
|
|
Style
|
Mechanical Seal
|
|
Temperature
|
-30℃ +200℃
|
|
Applicable Industries
|
Excavators,Standard cylinders,Mobile hydraulics
|
Floating Oil Seal describe
Floating seal consist of two same metal steel rings and two same rubber o rings.
Floating seal groups which is one of mechanical seals,consists of two identical steel rings and rubber washers. The seal operates by preloading the two rubber washers and floating the two polished steel faces between them within the seal chamber.
Floating seals is applicable to various engineering machinery and mining machinery such as bulldozers, graps, coat cutters, loaders, land levelers, cranes, and etc.
Features
In addition to the general requirements of the sealing ring material, the sealing ring should also pay attention to the following conditions:
(1) Full of elasticity and resilience;
(2) Appropriate mechanical strength, including expansion strength, elongation and tear resistance.
(3) The performance is stable, it is not easy to swell in the medium, and the thermal shrinkage effect (Joule effect) is small.
(4) It is easy to process and shape, and can maintain precise dimensions.
(5) Does not corrode the contact surface, does not pollute the medium, etc.
The most suitable and commonly used material to meet the above requirements is rubber, so the sealing ring is mostly made of rubber. There are many types of rubber, and new types of rubber are constantly appearing. When designing and selecting, one should understand the characteristics of various rubbers and choose them reasonably.
Application
| BRANDS | KOMATSU, VOLVO, HITACHI, JCB, SUMITOMO, KOBELCO, DAEWOO, HYUNDAI, DOOSAN, KATO,CAT, |
| MODELS |
KOMATSU: PC40-8 PC45-1/8 PC60-1/3/5/6/7 PC100-1/3/5 PC120-3/5 PC150-1/3 PC200-1/2/3/5/6 PC210-6 PC220-1/2/3/5 PC300-1/2/3/5 PC400-1/3/5/6 PC450-6 HITACHI: EX60 EX100 EX100-2/3/5 EX120 EX120-2/3/5 EX200 EX200-2/3/5 ZX200 ZX210 EX220 EX220/2/3/5 EX300-3 EX330 EX350 EX400 EX450 SUMITOMO: SH60 SH100 SH120 SH200-1/2/3 SH300 SH350 SH400 SH450 KATO: HD250V/V2 HD307 HD400SE HD400SE2 HD400V/V2 HD450V/V2 HD510 HD512 HD550SE2 HD550V/V2 HD700SE HD700-2 HD700SEV HD700V2 HD770SE HD800SEV HD820 HD850G HD880SE2 HD900SEV HD1023 HD1200G HD1220 HD1250 HD1430 HD1880SE HD2500SE |
| OUR PRODUCTS |
Backup Ring: N4W, BRT Buff Seal: HBTS, HBY O Ring, D Ring Piston Rod Seal: SPG, SPGO, SPGA, OK, SPGW, DAS, OUY, IDI, IUH, UN Rotary Seal: ROI Wear Ring: WR, KZT, RYT Wiper Seal: DH, DKB, DKBI, DKI, DLI, DWI |
