Product Details:
|
| Part NO: | Hydraulic Cylinder Bushing | Tolerance: | Based On Bushing |
|---|---|---|---|
| Color: | Gold And Silver | Inner Layer: | PTFE+CU |
| Application: | Excavator | Feature: | Wear,Dry,Low Resistance,Harden,Maintenance Free |
| Material: | Metal,composite | Type: | Sleeve, Flange,ring,split,tube,roll,roller,pipe |
| High Light: | Graphite Copper Hard Steel Bushings,SK60-3 Hard Steel Bushings,SK60-5 Steel Flange Bushing |
||

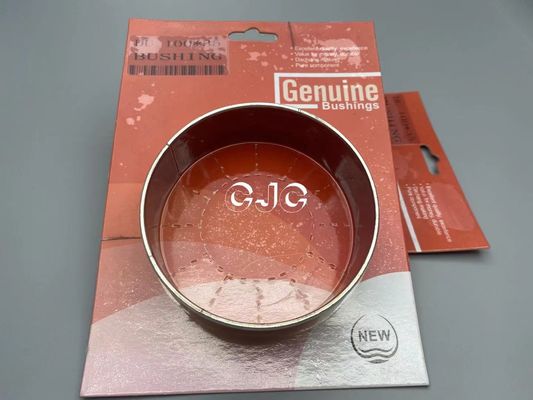

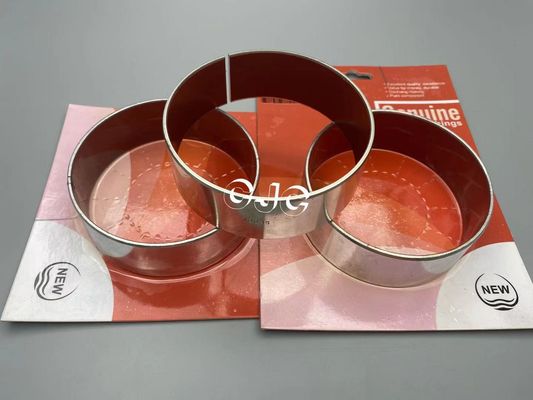

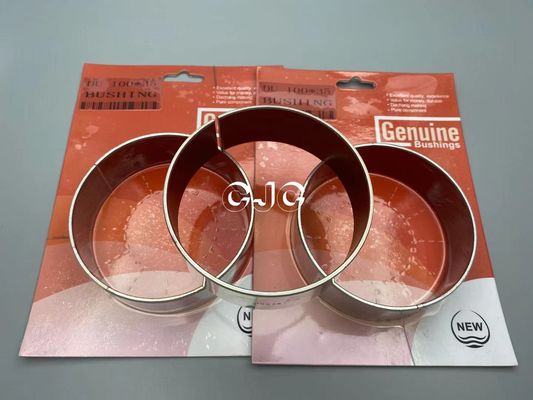

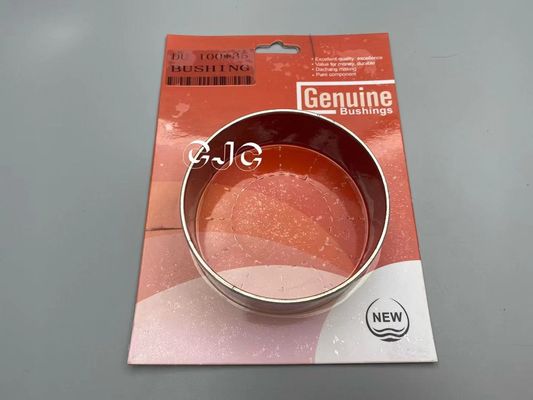

Hydraulic Cylinder Bushing Graphite Copper Bushing Oil-Free Steel Bushing
Specification
| Product Name |
Hydraulic Cylinder Bushing Graphite Copper Bushing Oil-Free Steel Bushing
|
|
Inner layer
|
PTFE+CU
|
|
Usage
|
elevator,agriculture machinery,etc
|
|
Material
|
metal,composite
|
|
Size
|
Various Sizes
|
|
Tolerance
|
Based On Bushing
|
|
Type
|
Sleeve, flange,ring,split,tube,roll,roller,pipe
|
|
Keyword
|
Cylinder Bushing
|
|
Feature
|
Wear,Dry,Low Resistance,Harden,Maintenance Free
|
|
Bushing Type
|
Multiple Types
|
|
Color
|
Gold And Silver
|
| Application |
Excavator
|
Cylinder Bushing describe
A bushing or rubber bushing is a type of vibration isolator. It provides an interface between two parts, damping the energy transmitted through the bushing. A common application is in vehicle suspension systems, where a bushing made of rubber (or, more often, synthetic rubber or polyurethane) separates the faces of two metal objects while allowing a certain amount of movement. This movement allows the suspension parts to move freely, for example, when traveling over a large bump, while minimizing transmission of noise and small vibrations through to the chassis of the vehicle. A rubber bushing may also be described as a flexible mounting or antivibration mounting.
Features
1. NBR Butadiene Rubber Sealing Ring: Suitable for use in petroleum hydraulic oil, glycol hydraulic oil, lubricating grease, gasoline, water, silicone grease, silicone oil, etc. It is the most versatile and lowest cost rubber seal. The general use temperature range is -40~120℃.
In addition to the general requirements of the sealing ring material, the sealing ring should also pay attention to the following conditions:
(1) Full of elasticity and resilience;
(2) Appropriate mechanical strength, including expansion strength, elongation and tear resistance.
(3) The performance is stable, it is not easy to swell in the medium, and the thermal shrinkage effect (Joule effect) is small.
(4) It is easy to process and shape, and can maintain precise dimensions.
(5) Does not corrode the contact surface, does not pollute the medium, etc.
The most suitable and commonly used material to meet the above requirements is rubber, so the sealing ring is mostly made of rubber. There are many types of rubber, and new types of rubber are constantly appearing. When designing and selecting, one should understand the characteristics of various rubbers and choose them reasonably.
Application
| KOBELCO: | SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450 | |||||||
| SUMITOMO: | SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300 | |||||||
| KATO: | HD250SE-2 HD250-5/7 HD307 HD400SE-2 HD400SEN2 HD400-5/7 HD450-5/7 HD510 HD512 HD550-5/7 HD700-2/5 HD700-7 HD770-1 HD770-2 HD800-5 HD800-7 HD820-1/2/3 HD900-5/7 HD1023 HD1220SE-2 HD1250-5/7 HD1430 HD1880-7 HD900-7 HD880 | |||||||
| VOLVO: | EC210B EC240B EC290B EC320C EC360B EC460B | |||||||
