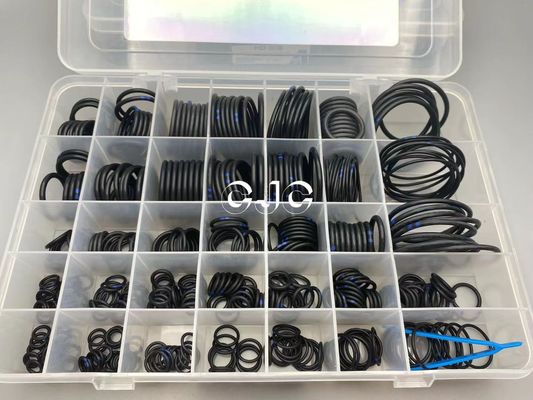

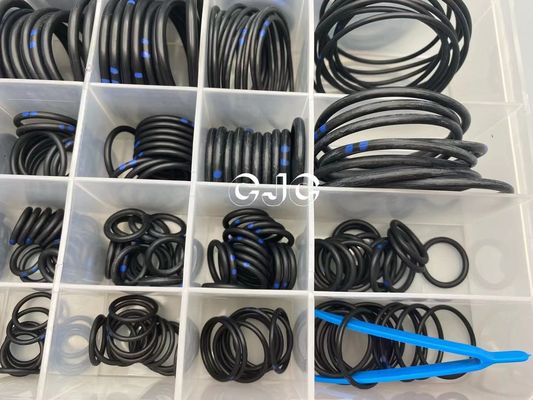

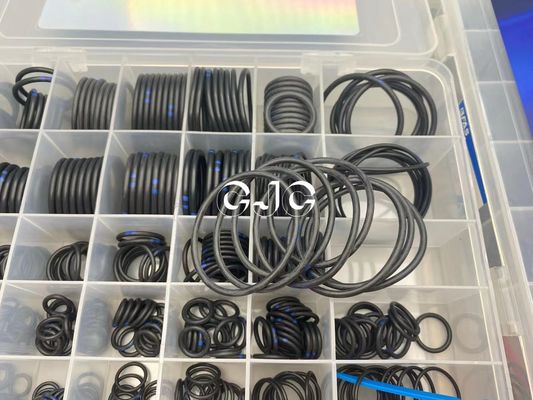

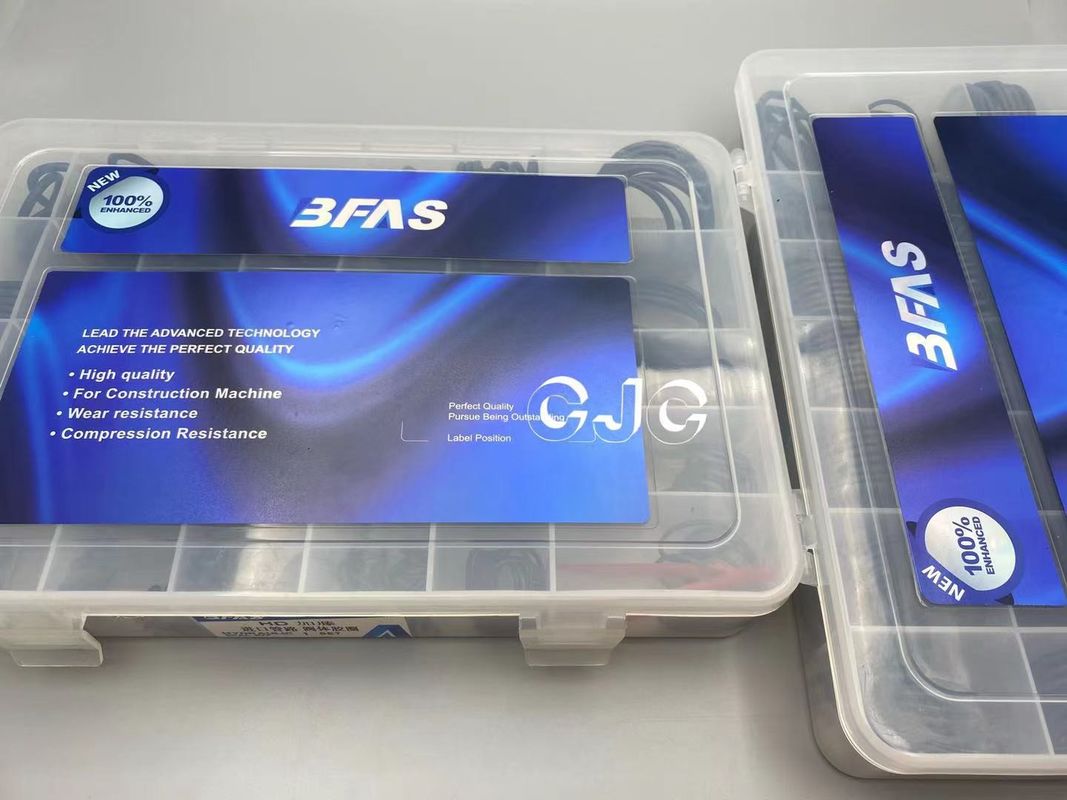

Kobelco O Ring Seal Kit

Kobelco Hydraulic O Ring Seal Kit Waterproof Elasticity Excavator Seal ORing Box

Specification

Hydraulic O Ring Box Describe

O-ring, also known as a packing, or a toric joint, is a mechanical gasket in the shape of a torus; it is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface.

The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.

O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable, and have simple mounting requirements. They can seal tens of megapascals (thousands of psi) of pressure.

Features

An O-ring is a type of static or dynamic sealing ring installed in grooves. Unlike many other seals that require special instruments for installation, it is easy to assemble into a function.

O-rings are the most versatile seals; they can provide axial or radial sealing solutions in nearly all applications to seal oil, water, air, gas and other fluids. They are widely utilized in various applications, anywhere from sophisticated home heating systems to automobile air-conditioning.

With internal polymer mixing lines,provides a wide range of rubber materials for O-rings that accommodate various operating conditions. These high-performance rubbers can endure the exposure to a variety of chemicals, extremely high and low temperatures and more.

Application

The size of the replacement seal should be the same. It is necessary to strictly follow the requirements of the instructions, and select the same size of the sealing ring, otherwise the tightness and other requirements cannot be guaranteed.

Avoid using old seals. When using a new sealing ring, carefully check its surface quality to ensure that there are no defects such as small holes, protrusions, cracks and grooves, and have sufficient elasticity before using it.

When installing, you should strictly clean all parts of the opened hydraulic system. It is best to use special tools to prevent fingers from being scratched by sharp metal edges.

When replacing the sealing ring, check the groove of the sealing ring strictly, remove the dirt, and polish the bottom of the groove.

In order to prevent damage and cause oil leakage, it must be operated in accordance with the regulations. At the same time, the machine cannot be overloaded for a long time or run in a relatively harsh environment.
