Product Details:
|
| Part NO: | SPGW | Keyword: | Hydraulic Cylinder Seals |
|---|---|---|---|
| Feature: | High Efficiency, Long Life | Application: | Excavator Seal |
| Catalog: | Oil Seal | Style: | Mechanical Seal |
| Material: | PTFE+NBR+POM | Pressure: | 30Mpa |
| High Light: | 707-44-15080 Seal Kit,SPGW Excavator Seal Kit,NBR Excavator Seal Kit |
||

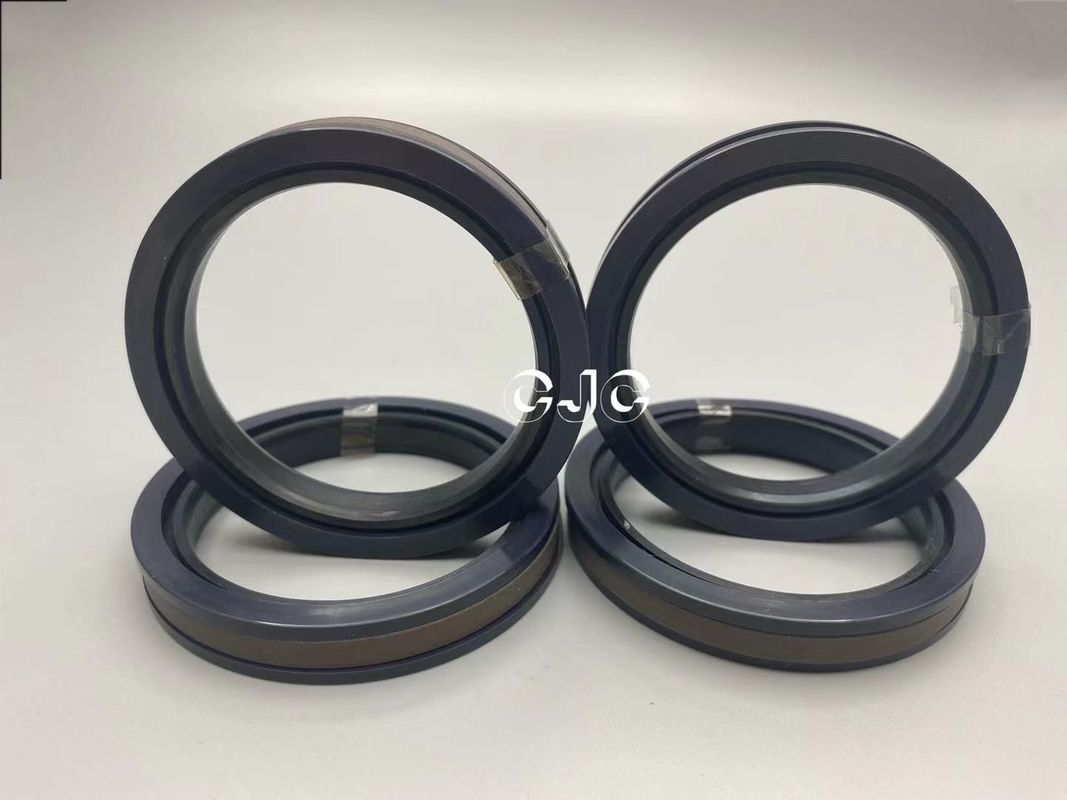

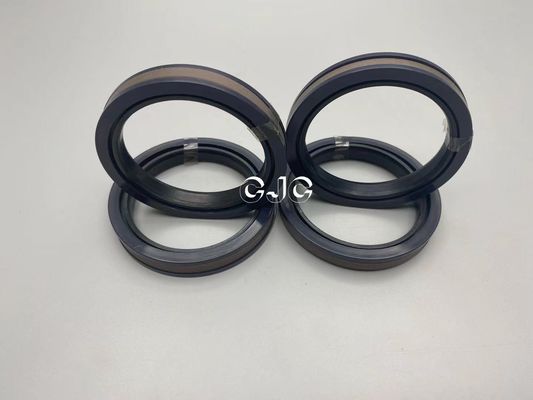

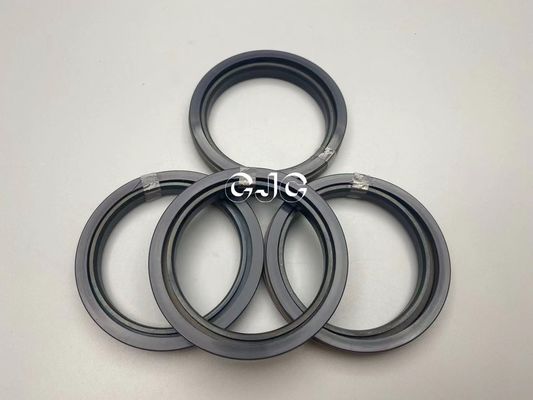

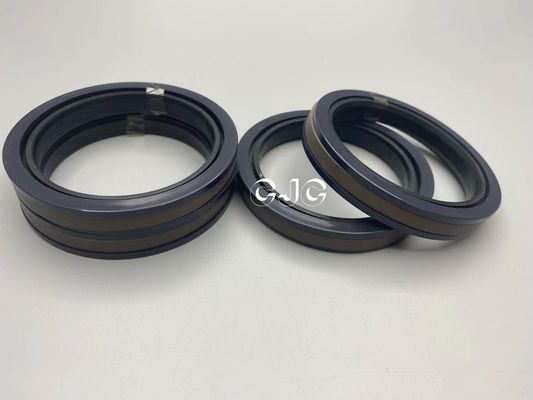

707-44-15080 SPGW Seal Excavator Seal Kit Hydraulic Piston Seals High Efficiency Long Life
Specification
| Product Name | 707-44-15080 SPGW Seal Excavator Seal Kit Hydraulic Piston Seals High Efficiency Long Life |
| Keyword | hydraulic cylinder seals |
| Style | Mechanical Seal |
| Application | Excavator seal |
| Feature | High Efficiency, Long Life |
| Transport Package | Carton Packing |
| Using | Oil Guard,Machine sealing |
| Machinery | Excavator |
| Material | PTFE+NBR+POM |
| Delivery | by Air,by Express |
| Pressure | Pressure Type |
Excavator Seal Kit Describe
1.It is applied to hydraulic system from middle load to high load.
2.antiextrusion characteristics is improved greatly.Long service life
3.Good Shape stability ,high wear resistance,good chemical stability
4.Excellent sliding performance,no creeping phenomenon
Features
Precautions
1. Clean the installation location;
2. Remove the burrs during the installation movement of the seal;
3. Apply lubricant on the seals;
4. Protect the sealing surface from damage;
5. Recheck to confirm that the size of the seal is correct;
6. Use corresponding tools to install the seals that need to be deformed and installed.
For reciprocated hydraulic systems. Possesing excellent performance if applied at heavy load and double sealing under high pressure working conditions. Particularly suitable for long stroke, large range of fuilds and high temperature. Applicable for bigger piston gap. Excellent leakage control, extrusion resistance and wear resistance. Mainly applied to heavy load and engineering machinery, for example: bulldozers, heavy duty hydraulic cylinders.
Application
| CA7: | E70B E110B E120 E140 E120B E180 E307 E308(ARM) E311 E311B E312 E312B E200 E200B E240 E240B E315 E318 E320 E320B E320C E322B E300 E300B E325 E325B E330 E330B E330C E345 E450 | |||||||
| KOMATSU: | 10HT-2/3, 20HT-2/3 PC20-1/2/3/6 PC30-1/2/3/7 PC40-1/2/3/5/7 PC45-8 PC50UU PC55UU PC60-1 PC60-2 PC60-3 PC60-5 PC60-6 PC60-7 PC75UU PC80-1 PC100-1 PC100-2 PC100-3 PC100-5 PC100-6 PC120-1 PC120-2 PC120-3 PC120-5 PC120-6 PC120-7 PC130-6 PC130-7 PC138-6 PC150-3 PC150-5 PC200-1 PC200-2 PC200-3 PC200-5 PC200-6 PC200-7 PC220-1 PC220-2 PC220-3-O PC220-3-N PC220-5 PC220-6 PC220-7 PC240-8 PC270-7 PC300-1/2 PC300-3 PC300-5 PC300-6 PC360-7 PC400-1 PC400-3 PC400-5 PC400-6 | |||||||
| HITACHI: | UH04-5 UH07-7O/N UH09 UH09-7 EX60-1/2/3/5/6 EX90-1 EX100-1 EX100-2 EX100-3 EX100-5 EX120-1 EX120-2 EX120-3 EX120-5 EX120-6 EX160-1 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX210-5 EX220-1 EX220-3 EX220-5 EX220-6 EX270 EX300-1 EX300-3 EX300-5 EX300-6 EX330-3 EX400-1/2/3/5/6 EX450-1/2/3/5/6 ZAX55 ZAX60 ZAX70 ZAX100-1 ZAX100-2 ZAX135 ZAX200-1/6 ZAX210 ZAX225 ZAX230 ZAX230-5 ZAX240 ZAX250-8 ZAX270 ZAX330 ZAX350-3 ZAX360 ZAX360-3-N ZAX360-O ZAX450 | |||||||
| KOBELCO: | SK07-N2 SK55 SK60-1 SK60-2 SK60-3 SK60-5 SK60-6 SK100-1 SK100-2 SK100-3 SK100-5 SK100-6 SK120-1 SK120-2 SK120-3 SK120-5 SK120-6 SK135-7 SK200-1 SK200-2 SK200-3 SK200-5 SK200-6 SK200-6E SK200-7 SK200-8 SK210-6E SK210-7 SK210-8 SK230-6 SK230-6E SK220-3 SK220-6 SK235 SK250-8 SK300-3 SK300-6 SK310-3 SK320-3 SK320-6E SK320-6 SK330-8 SK350 SK350-6 SK350-8 SK400-3 SK09 SK450 | |||||||
| SUMITOMO: | SH60 SH75 SH100 SH120-1/2/3/5 SH160 SH200-1/A3 SH210 SH220 SH220A3 SH260 SH300-2 SH350 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS4300 | |||||||
| KATO: | HD250SE-2 HD250-5/7 HD307 HD400SE-2 HD400SEN2 HD400-5/7 HD450-5/7 HD510 HD512 HD550-5/7 HD700-2/5 HD700-7 HD770-1 HD770-2 HD800-5 HD800-7 HD820-1/2/3 HD900-5/7 HD1023 HD1220SE-2 HD1250-5/7 HD1430 HD1880-7 HD900-7 HD880 | |||||||
