HNBR Bulldozer Rubber O Ring Kit , FKM Dustproof Sealing Ring Kit - 60-320 Degree

Hydraulic O Ring Seal Kit Good Resistance To Ozone High Temperature Resistance

Specification

Hydraulic O Ring Box Describe

O rings are used for creating a seal or for light-duty drive belts and are found in plumbing, pumps, gearboxes and hoses. In particular, these kits are handy when emergency mechanical repairs are required or during routine maintenance. For those with an interest in tinkering with motorbikes or cars, this storage kit is a must-have.

Since metric sized O ring kits are such an invaluable item for engineers, choosing the right kit is important. You'll want one that is robust and of high quality, with the correct size of rings for the appropriate applications. You'll also need to ensure the rubber of the O ring offers the resistance you require against certain chemicals, oils or petrol.

If you are looking to purchase a metric sized O ring kit, we can help at Simply Bearings. As a specialist supplier of metric O ring kits, we have got all that you need under one roof. Whether you require a nitrile rubber kit, a Viton rubber O-ring kit or a flat seal kit, you are spoiled for choice when you shop with us.

Features

NBR /FKM rubber machinical seal o ring kit
O Ring usually using for static seal (eg: water / oil / gas/ chemical solvents /chemical medicine)liquid enviroment etc.
Some times can be use for Semiconductor Vacuum enviroment.
Long terms use temperature between -60℃ to +220℃. It depends on different material.
Static seal pressure should less than 20MPa. Dynamic seal pressure should less than 5MPa.It depends on different material.

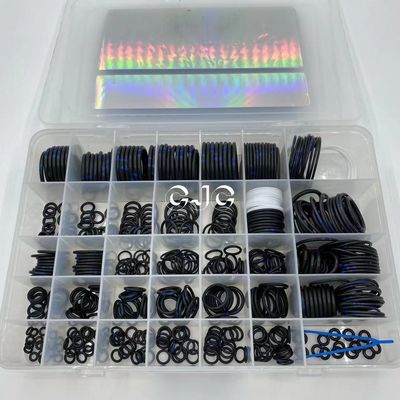

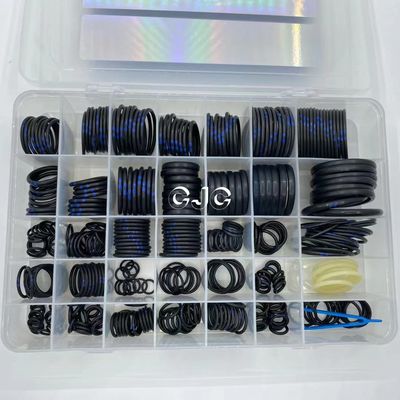

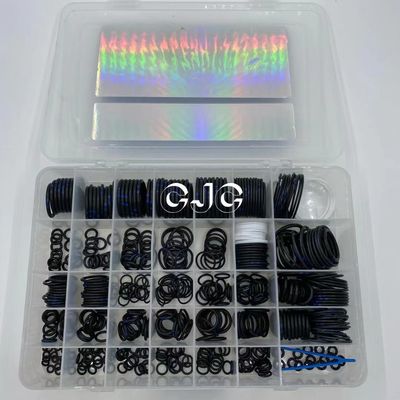

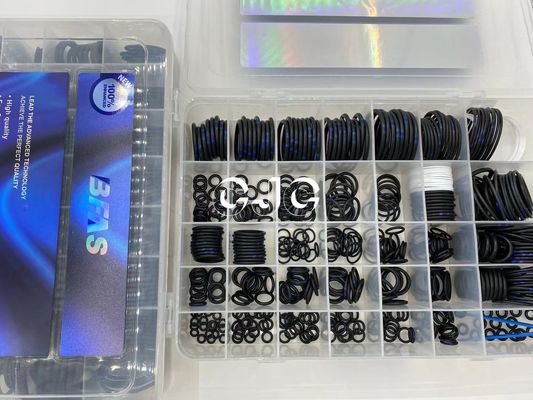

O Ring Kit has 18-32 kinds of size (with NBR /FVMQ 70shore /FKM 75shore )O ring / X ring Washer. It’s the necessary tools for machinical repair.

Application

The size of the replacement seal should be the same. It is necessary to strictly follow the requirements of the instructions, and select the same size of the sealing ring, otherwise the tightness and other requirements cannot be guaranteed.

Avoid using old seals. When using a new sealing ring, carefully check its surface quality to ensure that there are no defects such as small holes, protrusions, cracks and grooves, and have sufficient elasticity before using it.

When installing, you should strictly clean all parts of the opened hydraulic system. It is best to use special tools to prevent fingers from being scratched by sharp metal edges.

When replacing the sealing ring, check the groove of the sealing ring strictly, remove the dirt, and polish the bottom of the groove.

In order to prevent damage and cause oil leakage, it must be operated in accordance with the regulations. At the same time, the machine cannot be overloaded for a long time or run in a relatively harsh environment.
